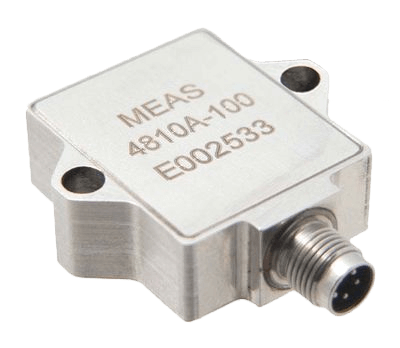

4810A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 4810A is an ultra-stable MEMS accelerometer in a welded stainless steel package.
The accelerometer offers an amplified signal conditioned output in ranges from ±2 to ±200 g. The model 4810A incorporates a gas damped silicon MEMS sensing element that incorporates mechanical overload stops for shock protection to 5,000 g and a wide bandwidth from DC to 2,000 Hz.
Features- ±2 to ±200 g Dynamic Range
- 8-36 Vdc Excitation Voltage
- Hermetically Sealed, Detachable Cable
- Integral Cable Option, Model 4810B
- Gas Damped MEMS Element
- Temperature Compensated
1 - 12 of 14 Part Numbers
4810A-0002-C
- Electrical Interface - Connector
- Range - ± 2 G
4810A-0005-C
- Electrical Interface - Connector
- Range - ± 5 G
4810A-0010-C
- Electrical Interface - Connector
- Range - ± 10 G
4810A-0020-C
- Electrical Interface - Connector
- Range - ± 20 G
4810A-0050-C
- Electrical Interface - Connector
- Range - ± 50 G
4810A-0100-C
- Electrical Interface - Connector
- Range - ± 100 G
4810A-0200-C
- Electrical Interface - Connector
- Range - ± 200 G
4810B-0002-C
- Electrical Interface - Integral Cable
- Range - ± 2 G
4810B-0005-C
- Electrical Interface - Integral Cable
- Range - ± 5 G
4810B-0010-C
- Electrical Interface - Integral Cable
- Range - ± 10 G
4810B-0020-C
- Electrical Interface - Integral Cable
- Range - ± 20 G
4810B-0050-C
- Electrical Interface - Integral Cable
- Range - ± 50 G
1 - 12 of 14 Part Numbers
Specifications
Accuracy
- ± 1 % of Full Scale Output - Non-Linearity
Applications
- Flight Testing
- Low Frequency Monitoring
- Machine Control
- Road Vehicle Testing
- Trains
- Transportation
Approvals & Certifications
- CE
- IEC 60529
- RoHS
Electrical Connectors
- M3 Screws - Mounting
Environmental Protection
- IP67
Excitation Voltage
- 8-36 Vdc
Frequency
- 0 to 1,500 Hz
- 700 to 8,000 Hz - Natural Frequency
Insulation Resistance
- > 100 megaohms at 100 Vdc
Mounting
- Surface Mounting - Ground Isolation
NACE & NIST
- NIST - Traceable Amplitude Calibration
Operating Temperature
- -55° to 125° C (-67° to 257° F)
Output
- < 5 mA - Excitation Current
- ± 2 V - Full Scale Output Voltage
- ± 50 mV - Zero Acceleration Output
Output Noise
- 35 to 1,033 µg/√HZ - Passband: Spectral Noise
- 400 to 800 µV RMS - Passband: Residual Noise
Resistance
- < 100 ohms - Output Resistance
Sensitivity
- < 3 % - Transverse Sensitivity
- ± 0.010 %/°C - Thermal Sensitivity Shift
- 10-1,000 mV/g
Shock
- 5,000 G
Storage Temperature
- -55° to 125° C (-67° to 257° F)
Supply Voltage
- 2.5 Vdc - Bias Voltage
Turn-On Time
- < 100 milliseconds
Zero Balance
- ± 0.004 % of Full Scale Output/°C - Thermal Zero Shift
