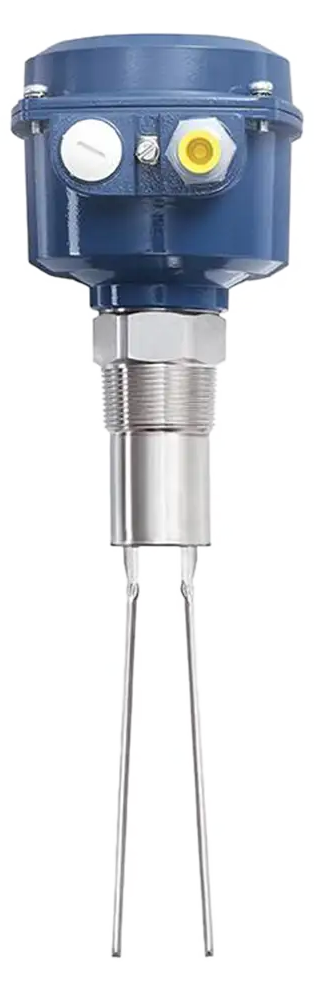

Vibranivo® - VN 6020 Vibration Level Switch
Brand: UWT GmbH
Application Area
The VibranivoĀ® VN 6020 vibrating fork is used in storage and process containers as a full, demand and empty detector in dry and free flowing bulk solids.
Due to its high sensitivity, the vibrating level switch is particularly suitable for very light bulk solids.
The high surface quality of the stainless steel probe also makes it ideal for use in applications with hygiene requirements.
The VN 5020 offers more space for wiring due to the larger housing and additionally a flameproof version for use in the GasEx area.
Features- Maintenance-free sensor for use in many bulk materials. Particularly suitable for very light bulk solids
- Extension is completely made of stainless steel
- Flameproof versions available for use in potentially explosive atmospheres (gas)
Specifications
Brand
Measurement Principle
- Vibration (Fork)
Measuring Task
- Point Level Measurement
Version
- Short Extension
- Remote Version
- Enhanced Sensitivity

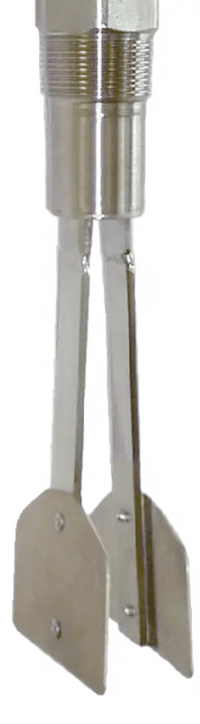

- Vibrasil 70
- Vibrasil 90
Medium
- Solids
Mounting Position
- Horizontal
- Angled (In the Cone)
- In Down Pipes
Ambient Temperature
- -40Ā°C ā¦ +60Ā°C (-40 ā¦ +140Ā°F)
Process Temperature
- -40Ā°C ā¦ +150Ā°C (-40Ā°F ā¦ +302Ā°F)
Process Pressure
- -1 bar ā¦ +16 bar (-14.5 psi ā¦ +232 psi)
Minimum Sensitivity
- > 20 g/l (> 1.2 lbs/ftĀ³)
- Option Enhanced Sensitivity: > 5 g/l (> 0.3 lbs/ftĀ³)
- Option Vibrasil: 0.3 lbs/ftĀ³)
Housing Type
- Standard
- Flameproof
- Increased Safety
Housing Material
- Aluminum
Housing Protection Rating
- IP66
Threaded Connection
- ā„ R 1Ā½"
- ā„ NPT 1Ā½"
Flange Connection
- ā„ 2" / ā„ DN100
Hygienic Fittings
- Triclamp 2"
Wetted Materials
- Stainless Steel 1.4301 (304)
- Stainless Steel 1.4404 (316L)
- Stainless Steel 1.4541 (321)
Mechanical Load
- Oscillating Rods: 0.6 kN
Minimum Immersion Length
- 235 mm (9.25")
- Option Vibrasil/ Enhanced Sensitivity: 260 mm (10.24")
Maximum Immersion Length
- Option Vibrasil/ Enhanced Sensitivity: 260 mm (10.24")
- 235 mm (9.25")
Power Supply
- 19...230 VAC
- 12.5...36 VDC
- Universal Voltage (19...55 VDC / 19...230 VAC)
- NAMUR
Signal Output
- Relay SPDT
- Relay DPDT
- Transistor PNP
- NAMUR
- 8/16 mA
- 4-20 mA
Approvals
- CE, General Purpose, ATEX, IEC-Ex, TR-CU, INMETRO, FM, CSA
Explosion Protection
- Dust Ignitionproof (Ex t)
- Intrinsic Safe (Ex i)
- Explosionproof/ Flameproof (Ex d)
- Increased Safety (Ex de)
Hygienic / Pharma
- EG 1935/2004
- FDA
Optical Indicator
- LED
Adjustment Possibility
- Adjustable Sensitivity
- Adjustable Output Delay
- Switchable Logic (Fail Safe High - Fail Safe Low)
- Chemicals
- Power
- Metal
- Building, Cement & Quarry
- Food & Beverage
- Synthetics
