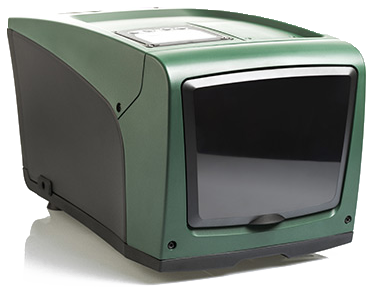

ESYBOX MINI 3 - Spare Parts
Brand: Dab Pumps S.p.A
Thanks to the technological know-how developed during more than 40 years, DAB Pumps is proud to introduce to the market the ESYBOXmini³, this is the most compact electronic pressurization system in the world.
Revolutionary, integrated E.SYBOX mini³; provides a new installation experience and maximum comfort during use.
E.SYBOX mini³ benefits from the most advanced DAB technologies to ensure a consistent pressure based on actual needs, and therefore an optimization of energy consumption.
E.SYBOX mini³ has a different appearance than any other booster set and is small and completely integrated.
Once you install and use it, you realize that the real difference is in the comfort and performance.
ESYBOX mini³ uses the most advanced DAB technologies to create constant pressure according to the system demands and thus an optimization of energy consumption.
The new 3-rotor model ensures further noise reduction and energy consumption.
Managing the water pressure in your home has never been so simple and quiet.
ESYBOX mini³ is the DAB compact automatic booster system for the water supply of a single dwelling.
ESYBOX mini³ guarantees the comfort of constant pressure (Pressure Set Point adjustable from 15 up to 79 psi) inside the system.
Suitable for use with drinking water, in domestic systems, and in gardening applications.
ESYBOXmini³ does not require any additional components for its installation.
Features- It consists of a high frequency self-priming double impeller pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with ¼ gallon built-in expansion vessel, and cartridge check valve
- The double suction and delivery ports allow both vertical and horizontal installation
- Thanks to its compact sizes, installation is also possible in difficult places without high air exchange
- The ESYWALL wall bracket allows wall installation, saving even more room
- ESYBOX MINI is a self-priming pump with a capability of 26 ft in less than 5 minutes
- The water-cooled motor, the anti-vibration feet and the electronics, make this product totally comfortable and compact
- Fitted with all the safety protections, as well as the protections for the safeguard of the pump. Particularly, the dry run and the antifreeze protections
- All the parameters and the operating status are displayed & set on the high-resolution LCD display
- Advantages
- Thanks to the technological knowledge gained during the past 40 years, DAB PUMPS is proud to introduce the ESYBOX mini³, the most compact and advanced booster pump system in the world
- Revolutionary and complete, ESYBOX mini 3 provides a new installation experience, whisper quiet running and maximum performance
- ESYBOX mini³ is the ideal solution to solve any water pressurization issues in residential environments
- ESYBOX mini³ takes advantage of the most advanced DAB technologies, to ensure a consistent pressure based on actual demands, and therefore an optimization of energy consumption
- Thanks to its versatility, ESYBOX mini³ can be installed anywhere, even under the kitchen sink
- Benefits
- Guarantees consistent Water Pressure
- Ultra Low Noise
- No Vibrations
- Easy to Adjust
- Equipped with a Large Display
- Extremely Compact Sizes
- Quick to Install
- Installation Options:
- Horizontal, Vertical
- Reduced Energy Consumption
- Easy Maintenance
1 - 12 of 21 Part Numbers
1
12
14
2
21
22
23
25
26
34
4
41
1 - 12 of 21 Part Numbers
Specifications
Brand
Operating Range
- Capacity up to 22 gpm (80 L/min); Head up to 183 ft (56 m) - (80 psi)
Liquid Quality Requirements
- Clean, free from Solid or Abrasive Contaminants, Non-viscous, Non-aggressive, Uncrystallized and Chemically Neutral
Liquid Temperature Range
- From 32°F to +95°F (0°C to +35°C) for Domestic Use
- For Other Use: from 32°F to +104°F (0°C to +40°C)
Maximum Suction Depth
- 26 ft (8 m)
Maximum Ambient Temperature
- +122°F (+50°C)
Maximum Pressure
- 108 psi (7.5 Bar)
Maximum Settable Pressure
- 79 psi (5.5 Bar)
Motor Protection Rating
- IPX4
Insulation Class
- F
Installation
- Horizontal or Vertical Fixed Position
Approvals
- CSA certification to CSA Standard C22.2 No 108- 14 Liquid Pumps
- UL Standard 778- 5th Edition- Motor Operated Water Pumps
- NSF/ANSI 61 - 2014a - Drinking Water System Components – Health Effects
- NSF/ANSI 372 - 2011 - Drinking Water System Components – Lead Content
