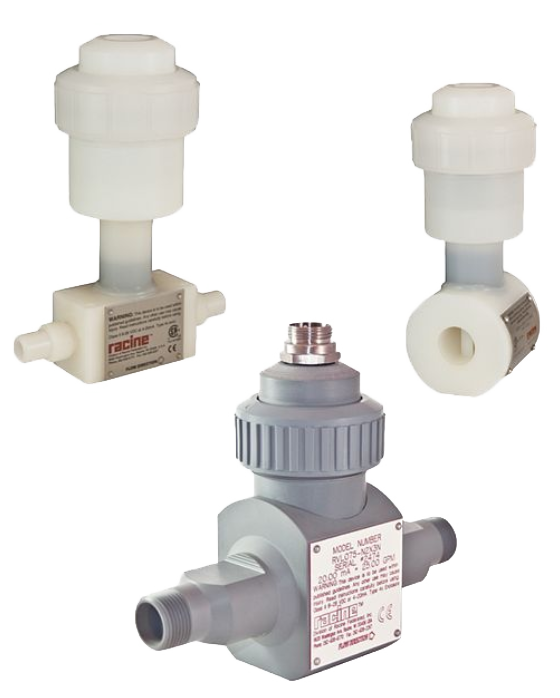

The RVL series meter uses vortex-shedding technology has no moving parts, and any potential for fluid contamination is eliminated by the corrosion-resistant all-plastic construction.

Unlike meters containing metal or moving parts, the RVL is perfect for aggressive or easily contaminated fluids.
Features
  • No moving parts. Corrosion-resistant all-plastic construction
  • Ideal for aggressive or easily contaminated fluids once installed
  • Flow metering for aggressive fluids. Applications range from ultra-pure water to highly corrosive chemicals and slurries
  • Replaceable Electronics Module. Includes a compact two-wire (4…20 mA) or three-wire pulse transmitter, contained within a conveniently replaceable plug-in electronics module. All electronics are housed in a corrosion-resistant enclosure

Specifications

Brand

Measured Fluids

  • Liquids

Connections

  • Butt or NPT Thread Wafer (Mounted between Flanges)

Accuracy

  • ±1% of Full Scale, 4…20 mA; ±2% of Full Scale, Frequency Pulse

Repeatability

  • ±0.25% actual flow

Response Time

  • 2 seconds minimum, Step Change in Flow

Input Power

  • 13…30 VDC

Signal Output

  • 4…20 mA or Frequency Pulse (Source–Sink Driver; 1A Source/1.5A Sink; Typical Output Resistance 10 Ω)

Enclosure

  • NEMA 4X (IP 66)

Certifications

  • CE: EN50082-1:1992

  • Utility Water Treatment & Distribution
  • Process & General Industry
