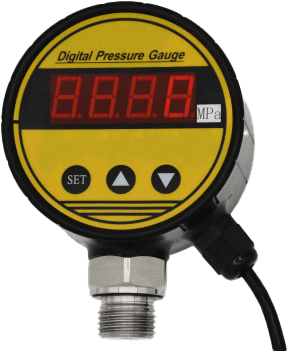

UPB6 LED Pressure Transmitter adopts the pressure sensor UPX19 with stainless steel isolation diaphragm as the pressure measuring element, with good performance in long term stability and reliability.

With 4-digit LED indicator, the pressure value can be read real time.

UPB6 LED Pressure Transmitter is widely used in hydropower, petroleum, chemical, hydraulic and other industries to measure the pressure of the fluid medium.
Features
  • Complete smart 4~20 mA working pattern 4-digit 0.56" LED display
  • Provide rapid calibration function, parameter modification function, key modification function, suitable for the special needs of various customers
  • Full digital calibration, without any movable potentiometer, lower temperature drift
  • Stronger anti-interference design, suitable for all kinds of electromagnetic industrial environment.
  • A unique non-linearity correction function, ideal for removing sensor's non-linearity errors
  • Case and circuit board are made through professional mold, firm and reliable
  • Special strong anti-interference design, especially suitable for the heating and water supply industry
  • Cable outlet port using a waterproof joint, protection IP65

Specifications

Pressure Ranges

  • -1...0 ~ 0.1...1000 bar

Overload Pressure

  • 150 % Full Scale

Output Signal

  • 4 ~ 20 mA Two Wire

Accuracy

  • 0.25 % Full Scale, 0.5 % Full Scale

Load Resistance

  • RL = (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)

Long-Term Stability

  • < 0.2 % Full Scale/year

Supply Voltage

  • 12 ~ 32 Vdc

Operating Temperature Range

  • -30° ~ 80° C

Temperature Coefficient of Zero

  • 0.2 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.2 % Full Scale/10° C

Process Connection

  • G1/2” or others

Housing Material

  • ABS Engineering Plastic

Sealing Material

  • Nitrile Rubber

Dial Meter

  • 82 mm

Display Speed

  • 10 times/second

Display Method

  • 4-Digit 0.56” LED Red Color Highlight

Display Range

  • -1999 ~ 9999
