Panel Mount Device PM ET-467

Ambient Conditions

• Ambient temperature operation - -20 °C … +55 °C
• Ambient temperature operation 1 - -30 °C … +55 °C with heater version O30
• Cold start temperature - -10 °C
• Storage temperature - -30 °C … +70 °C
• Temperature note 1 - The O30 version is only available for the AC version devices !
• Temperature note 2 - Operating temperature +55 °C for a maximum of 5 h, for constant operation (24/7) +50 °C.
• Temperature note 3 - Cold start temperature: If the HMI device is switched on at a temperature below -10 °C the display will need a certain amount of time to warm up until everything is clearly visible. Depending on how low the temperature is, this process may last up to 3 hours.
• Temperature note general - The temperature details apply to a standard device combination with display, keyboard and enclosure. Any additional built-in or added components may have an impact on / change these.

Components

• Keyboard - optional, 107 keys with trackball / joystick / mouse / touchpad (Ex ia)

Display

• Backlight - LED Technology
• Backlight service life - 50 000 h at +20 °C
• Display brightness - 250 cd/m²
• Display contrast - 1000:1
• Display dimensions - 16:10
• Display resolution - WSXGA+
• Display size centimetres - 56
• Display size inch - 22
• Display version - TFT Colour display
• Display version 2 - 16.7 million colours
• Front plate (display) - Aluminium
• Total pixels - 1680 x 1050
• Touch screen - optional, resistive
• Touch screen technology - 5-wire glass or membrane touch

Electrical Data

• Battery buffered - > 5 years
• Capacitor buffered - at least 4 days
• Connection compartment - Power supply direct in integrated Ex e connection box
• Connections - via screw terminals, green
• Data cable - 9/125 μm FO cable
• Data cable length - max. 10 km
• Data memory - 64 GB SLC 128 GB MLC
• Ethernet / Data - 1000Base-LX (Ex op is)
• Frequency range - 50 - 60 Hz
• Graphics controller - integrated Intel Gen. 7 HD Graphics
• Interface Audio - 1 x Audio line out (Ex e)
• Interface medium - Single-mode optical fibre cable
• Interface Serial - 1 x RS-232 (Ex e)
• Interface USB - 2 x USB (Ex ia) 1 x USB (Ex e) 2 x USB (Ex ia) (keyboard, pointing device)
• Language support - via Windows operating system
• Max. input voltage Um - 250 VAC
• Memory technology - SSD solid state flash drive
• Operating system - Windows Embedded Standard 7 (64-Bit) Windows 7 Ultimate (64-Bit)
• Plug version FO - LC duplex connector
• Power consumption AC 1 - 1 A
• Power consumption DC - 3 A
• Processor details - Intel Bay Trail (BT); 1.91 GHz; quad core
• Processor type - ATOM E3845
• Protection fuse AC - 5 AT
• Protection fuse DC - 5 AT
• RAM - 4 GB
• Rated operational power - typ. 50 W / 100 W with O30 / max. 150 W (typ. 170 BTU / 341 BTU with O30 / max. 510 BTU)
• Rated operational voltage AC - 230 V
• Rated operational voltage DC - 24 V
• Real-time clock - yes
• Real-time clock data buffer - Lithium battery and capacitor buffered, maintenance-free
• Voltage range AC - 100 - 240 V
• Voltage range DC - 20 - 30 V
• Wiring - flexible cable up to 2.5 mm² (AWG14) fixed cable up to 4 mm² (AWG12)
• WLAN - optional via USB

Explosion Protection

• Application range (divisions) - Class I, Division 2
• Application range (zones) - 1 2 21 22
• Certification ATEX - BVS 11 ATEX E 102 X
• Certification CEC - 70011698
• Certification EAC - TC RU C-DE.ГБ04.B00478
• Certification IECEx - IECEx TUR 11.0075X
• Certification KCC - yes
• Certification KGS - 12-GA4BO-0617X
• Certification NEC - 70011698
• Certification note - The certificates and explosion protection markings apply to a standard device combination with display, keyboard and enclosure. Any additional built-in or added components may have an impact on / change these.
• Certifications - ATEX, IECEx, NEC, CEC, EAC, KGS
• Dust explosion protection ATEX - II 2(1) D Ex tb IIIC [ia op is Da] IP65 T110°C Db
• Dust explosion protection EAC - Ex tb IIIC [ia op is Da] IP65 T110°C Db
• Dust explosion protection IECEx - Ex tb IIIC [ia op is Da] IP65 T110°C Db
• Explosion protection CEC - Ex e q [ia] IIC T4 Gb Class I, Division 2
• Explosion protection KGS - Ex e q IIC T4 Ex tb IIIC IP64 T110°C Ex ia IIC T4 Ex ia IIIB T110°C
• Explosion protection NEC - Class I, Zone 1 AEx e q [ia] IIC T4 Gb
• Gas explosion protection ATEX - II 2(1) G Ex e q [ia op is Ga] IIC T4 Gb
• Gas explosion protection EAC - 1Ex e q [ia op is Ga] IIC T4 Gb X
• Gas explosion protection IECEx - Ex e q [ia op is Ga] IIC T4 Gb

General

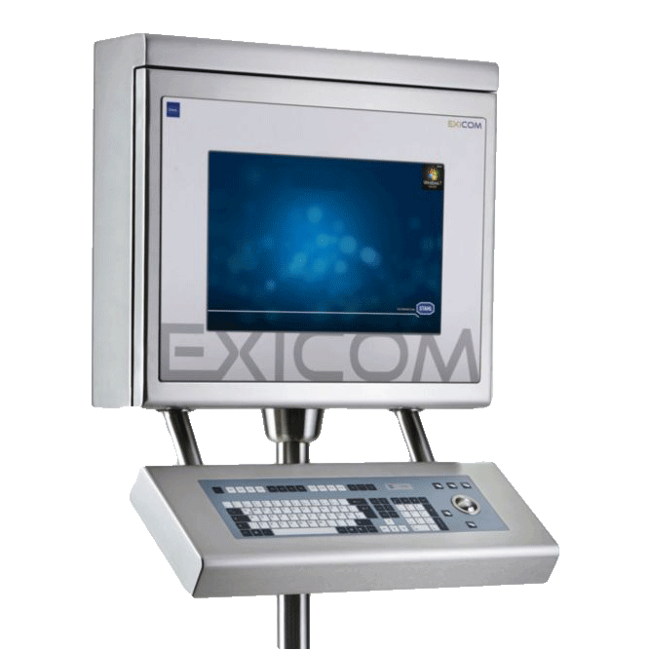

• Functional Description - The OS ET-467 HMI series includes Panel PC Operator Stations for zones 1, 2, 21, 22 and Division 2. Their brilliant 22" widescreen displays with a resolution of 1680 x 1050 pixels (format 16:10) are available with or without touch screen. The stainless steel enclosures (SS304 or SS316L) are available with a front opening or in cleanroom-compliant design and with different mounting options. Accessories include country-specific keyboards, pointer instruments and RFID and barcode readers, and different memory sizes and SSDs complement the quad core processors. Data is transmitted via Ethernet as 1000Base-LX via single mode fibre optic up to 10 km.
• Highlights - Panel PC Operator Station, quad core ATOM E3845, 22" display, 1680 x 1050 Zone 1, 2, 21, 22, stainless steel enclosure IP66, optional acc. to GMP Display of the 19" (1280 x 1024) resolution true to 5:4 format Optional resistive glass or foil touch screen Data is transmitted via Ethernet as 1000Base-LX via single mode fibre optic up to 10 km.
• HMI type - Operator station
• Product description - 22" Panel PC
• Product Description - Panel PC SERIES 400 Device platform MANTA
• Product Type - OS ET-467-LX
• Series - Product Series OS ET-467
• Technology - Panel PC
• WebCode - ET467A

Mechanical Data

• Breather - optional
• Dimensions (WxHxD) - 740 mm x 872 mm x 400 mm
• Ingress protection - IP66
• Keyboard note - With a keyboard with trackball, the operator station’s ingress protection is reduced to IP54, when the trackball is moved.
• Material back - Stainless steel
• Material front - Aluminium / stainless steel
• Mechanical data note - The mechanical data apply to an FR enclosure with display and keyboard. Other enclosure types as well as any additional built-in or added components may have an impact on / change these.
• Weight - 64.5 kg

Mounting / Installation

• Enclosure type - Stainless steel enclosure (FR) optional clean room (CFR)
• Mounting option - Wall, elbow, stand
