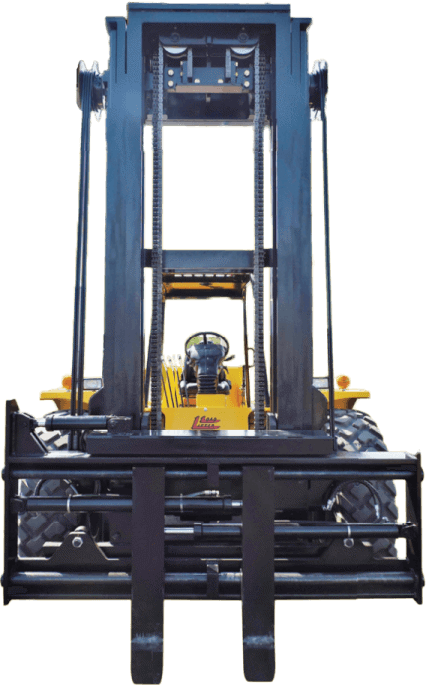

2200-2400 Series Forklift
Brand: Load Lifter
Known as our “Heart of the Line”, the 2200-2400 series offers a full range of features that meet the needs of most industries today.
Available in both 2 and 4 wheel drive, this model of forklift was designed around the operator and includes unparalleled visibility and modern machine ergonomics.
Advanced vibration and sound deadening technologies were used during the design process to provide quiet, smooth performance.
A full range of C-Thru masts is offered giving this series a wide range of applications.
Features- Industry leading visibility and sight lines
- Large operators compartment
- Generous leg and foot room
- Excellent operator access on and off machine
- Adjustable tilt steering column
- Solid state, L.E.D. instrument cluster
- Adjustable seat height from the operators position
- Fast, responsive hydraulic controls
- Finger tip steering even at low engine idle
- Componentized power train
- Limited slip differential
- Hydraulic oil immersed disc brakes
- Quieter operation due to increased insulation and anti-vibration technology
- Extremely tight turn radius
- Available in two & four wheel drive
- Full range of C-Thru masts
- 6,000 to 20,000 LB capacity
- Lift Heights to 30 Feet
- Roomy well equipped optional cab assembly
- Powder coated for a true life time finish
- Available with full factory R.O.P.S. Cab certification
- Available with factory U.L.C. DS certification
Specifications
Brand
Machine Approximate Weights
- 6,000 lb - 6352 kg (14,400 lb)
- 8,000 lb - 7031 kg (15,500 lb)
- 10,000 lb - 8029 kg (17,700 lb)
- 12,000 lb - 8890 kg (19,600 lb)
- 15K 11,249 kg (24,800 lb)
- 18K 13,063 kg (28,800 lb) 20K 14,523 kg (31,950 lb)
Engine
- PERKINS 854F-E34T
- Perkins 1104D-44T Turbo Diesel
Displacement
- 3.4 Litres (207.5 in³)
- 4.40 Litres (269 in³)
Gross H.P.
- 74.3 H.P. (55 KW.)
- 73.82 KW (99 H.P.)
Maximum Torque
- 291 NM. @ 1600 RPM (214.6 lb-ft)
- (283 ft-lb)
Rated Speed
- 2500 RPM
- 2300 r.p.m.
Transmission Type
- 4 Speed Synchromesh with Power Reverser & Torque Converter
- 4 Speed Full Powershift c/w "Smartshift Feature"
Hydraulic System Pump
- Gear Type System c/w Load Sense Steering Circuit
Filter
- 25 Micron Replaceable Element
Volts
- 12
Alternator
- 100 Amp
- 85 Amp
Instrumentation
- Full LED Display
Cooling System
- 11.5 litres / 12.2 Quarts
Engine Oil
- 6.8 litres / 7.2 Quarts
Fuel
- 100 litres / 26.4 U.S. Gal.
Hydraulic Oil
- 85 litres / 22.5 U.S. Gal
Transmission Oil
- 21.4 litres / 22.2 Quarts
Service
- Hydraulic Multiple Wet Disc
- Full Power Multiple Wet Disc
Parking
- Manual External Disc on Transmission
Axles Drive
- Heavy Duty Inboard Planetary Drive
Steer 2 WD
- Large 8" x 4" Solid Beam c/w Oversize Center Steer Control and Track Rod Design, Large Tapered Roller Bearing Spindle Wheel Ends
Steer 4 WD
- High Strength Cast Steel Housing c/w Planetary Drive Wheel Ends and 50° Lock Angle
