Kele Thermistor and RTD Sensor, KTU

KTU Thermistor & RTD Sensor

Brand: Kele
Add Product to My Catalog

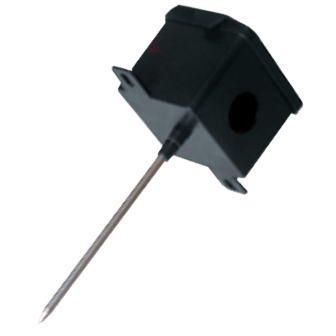

The Kele KTU* Series Universal-Mount Thermistor and RTD Sensors provide remote temperature sensing in multiple applications such as duct, OSA, and immersion installations for building automation systems.

The active sensing element is a highly stable thermistor material or platinum RTD.

The sensing element is sealed with a thermally conductive compound in a 4-7/8" (12.38 cm) long stainless steel probe and is attached to a 2.5" (6.35 cm) square enclosure.

The tabs on the enclosure provide mounting ears for direct duct mounting and are easily removable if they are not needed.

This multipurpose enclosure minimizes the number of stock parts required to handle multiple applications.
Features
  • Flame retardant, plenum rated
  • Adaptable with many mounting options
  • 304 stainless steel waterproof probes
  • Paintable plastic
  • NEMA 3R, IP22

View_Details

Specifications

Brand

Accuracy

  • ± 0.28° C (± 0.50° F) - Thermistor
  • ± 0.33° C (± 0.60° F) - RTD

Applications

  • Building Automation Systems

Approvals & Certifications

  • CE

Approvals & Certifications

  • Compliance/Conformance

Dissipation

  • Heat: 2.7 mW/°C (Power Needed to Raise the Temperature 1° C (1.8° F))

Electrical - Free Leads

  • 18” (45 cm) Free Leads - for Typical 81
  • 8 feet (2.4 metres) & 25 feet (7.6 metres), 24 AWG Wire Leads

Element

  • Sensing Element: Platinum RTDs

Enclosure, Body Material

  • Plenum-Rated Plastic, UL 94V-0

Environmental Protection

  • IP22
  • NEMA 3R

Insertion 'U' Length

  • 1” to 108” (2.54 to 274.3 cm)

Materials of Construction

  • Well: 304 Stainless Steel
  • Well: Brass

Mounting

  • Directly to Duct Mount
  • Immersion Mount: Well
  • OSA Wall Mounted
  • Wall Mounting Bracket

Mounting Position

  • Horizontal

NACE & NIST

  • NIST

NPT Connection

  • 1/2” NPT Male
  • 1/8” NPT Male

Resistance

  • 2.252 to 100 kiloohms - Thermistor

RTD Type

  • Typical 81 & 85: 100 & 1,000 ohms Pt385 Curve
  • Typical 91: 1,000 ohms Pt375 Curve

Sensor, Probe Connection

  • 3-Wire

Sensor, Probe Material

  • Seamless 304 Stainless Steel, 4.87” (12.38 cm) Long

Sensor, Probe Type

  • RTD
  • Thermistor

Stability

  • ± 0.13° C (± 0.24° F) over 5-Years - Thermistor

Temperature Coefficient

  • Negative Temperature Coefficient - Thermistor
  • Positive Temperature Coefficient - RTD

Temperature Range

  • -40° to 105° C (-40° to 221° F) - Thermistor/RTD

Tube Connection

  • 1/4” O.D. Tube
