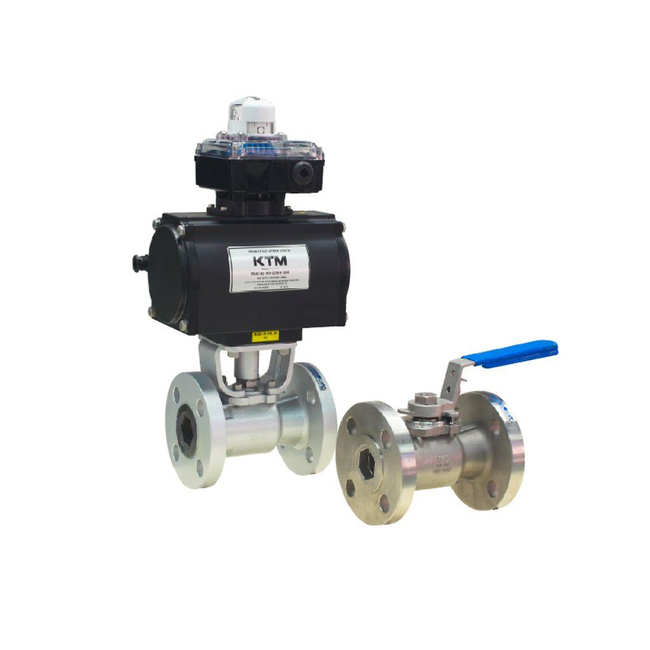

Series EB7 Unibody Floating Ball Valve

Brand: KTM

KTM Fire-safe and Anti-Static ASME 150/300 one piece, end entry, flanged ball valve for oil, gas, petrochemical and chemical industries.
Features
  • Designed to ASME B16.34, API 608 and ISO 17292.
  • Optional testing to API 6D / ISO 14313.
  • Single piece end entry body design complies with ASME B16.34.
  • ISO 5211 top mounting flange.
  • Face to Face to API 6D/ASME B16.10/BS 2080/BS EN 558.2.
  • Fire tested to API 607 6th edition.
  • Flange connection to ASME B16.5 as standard.
  • One piece body offers total pipe integrity minimizing the number of potential leak paths.
  • Carbon steel or stainless steel body as standard.
  • Precision 316 stainless steel ball as standard.
  • Blowout proof shouldered stem.
  • Anti-static device.

Specifications

Brand

Approvals & Certifications

  • Regional, PED, CE

Body Design

  • Long Pattern, Short Pattern, Side Entry

End Connection

  • Flanged

Material

  • Carbon Steel, 316 Stainless Steel

Media

  • Liquids, Liquid Propane, Liquid, Light Oil, Hot Water

Pressure Class

  • ASME

Process Connection Type

  • CL300 RF, 300 RF, Class 150 RF, 150 RF, Flanged

Seat / Seal Type

  • Ball, Soft Seal

Shutoff Class

  • API 598, Zero Leakage

Standards

  • API 608, ASME B16.34

Valve Size

  • NPS 1/2 / DN 15, NPS 2 / DN 50, NPS 1-1/2 / DN 40, NPS 1 / DN 25, NPS 3 / DN 80, NPS 8 / DN 200, NPS 6 / DN 150, NPS 4 / DN 100, NPS 3/4 / DN 20

Valve Size Standard

  • NPS, DN

Valve Type

  • Floating Ball Valve, Ball

  • Evaporators & Recovery Boiler
  • Facilities & Process Utilities
  • Enhanced Oil Recovery
  • Waste to Energy
  • Dryers & Evaporators
  • Distillation & Fractionation
