Fulflo TC (SSTC) Single Cartridge Filter Vessels | 316 Stainless Steel, Non ASME Code Design for Process Liquid Filtration

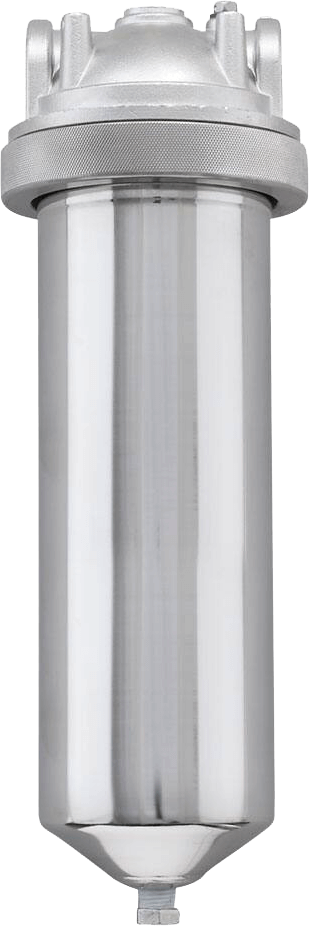

Brand: Domnick Hunter - by ParkerThe Fulflo® TC (SSTC) single filter cartridge vessels have a 316 stainless steel shell and a four-boss 316 stainless steel head for liquid filtration applications where an all-stainless steel construction is required.
The filter vessels feature a head which accepts SOE TC style filter cartridges which eliminates the possibility of fluid bypass.
Features- The filter vessels are sealed using a ring type threaded closure which requires no special tools to change the filter cartridges
- Threaded ring closure for quick filter cartridge change
- 222 seal cup for TC and competitive filter cartridge sealing (M3, Code 3, Code 0)
- Integrally cast brackets for easy mounting
- Standard Buna-N closure O-ring material with optional Viton, EPR and Silicone available
- Available for use with 10 in., 20 in., and 30 in. cartridge lengths
- Filter vessel has no internal parts
- Filter cartridge seating is positive and can be checked prior to closing
- All components have electro-polished finish
Specifications
Industry
- Industrial
- Inks, Paints, and Coatings
Function
- Clarification
- Prefiltration
- Polishing
Filter Construction
- Single Cartridge Filter Vessel
Kits Included
- 1 Cartridge
Specifications Met
- Non-ASME Code
Maximum Operating Pressure
- 200 psi / 13.8 bar
Maximum Operating Temperature
- 250° F
Flow Rate
- 5 gpm
- 10 gpm
- 15 gpm
- Solvent Filtration
- Chemical Filtration
- Potable Water Filtration
- Parts Washer Filtration
