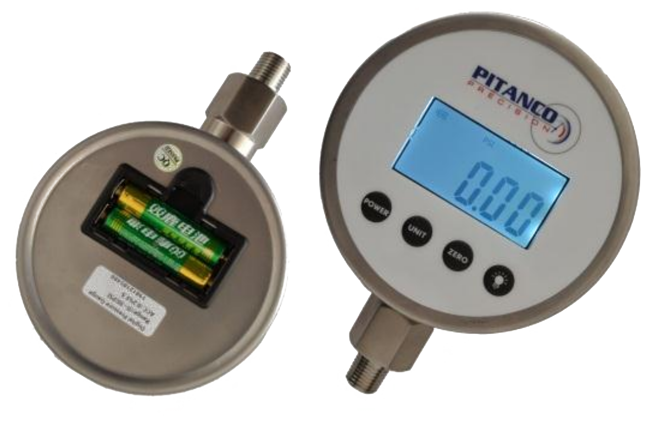

Model DPG200 High Accuracy Field Digital Pressure Gauge
Brand: Pitanco PrecisionDPG200 Digital Pressure Gauge is portable, field digital gauge. With advanced microprocessor technology and state-of the-art silicon pressure sensors,DPG200 test gauges provide a reliable economic solution for pressure application in the industries of power, chemical ,petrol, oil & gas metallurgy, metering, etc. Every DPG200 Digital pressure gauge passes the high and lower temperature aging, so it could assure the products more accurate and reliable.
Features- Pressure range to 1000 bar
- Accuracy 0.2%FS
- 4 bits big LCD display with Back light
- 304 Stainless steel housing
- Pressure units available (bar,psi , kPa, Kgf/cm² ,Mpa);
- Zero clearing
- On/off button
- Low voltage alarm
- Maximum and minimum function
- Dry-Battery-powered, low power design keeping it working more than 12 months
- Connection 1/4" NPT, 1/2" NPT , G1/4", G1/2"
Specifications
Brand
Over Pressure
- Range ≥ 10 Mpa 150 % , Range < 10 Mpa 200 %
Accuracy
- ± 0.2 %FS
Size
- 100 mm
Temperature Compensation
- 10° ~ 30° C
Supply
- 3 V (2 batteries of AAA)
IP Protection Rating
- IP65
Peak Values
- Maximum, Min
Measurement Medium
- 5 Times/Second
Pressure Connection
- M20*1.5
- G1/4”
- G1/2”
- NPT 1/2”
- NPT 1/4”
Connector Material
- 304 Stainless Steel
Housing Material
- 304 Stainless Steel
Electric Protection
- Reverse Protection
- Anti-Electromagnetic Interference
- Water Treatment System
- Water Pump and Air Compressor
- Mechanical and Electrical Equipment Automation
- Construction Machinery
- Medical Equipment
- Hydraulic and Pneumatic Systems
- Laboratory
- Test Stand
