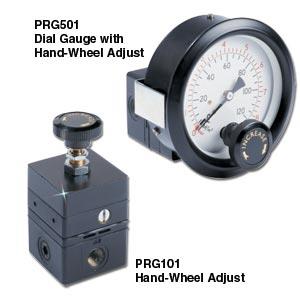

Precision Pressure Regulators
Brand: Parker HannifinParker Precision Fluidics Pressure Regulators are designed specifically to provide high resolution control at the low flow rates and pressures typical in analytical instrumentation applications.
Specifications
Brand
Body Material
- Aluminum, Stainless Steel
Flow Rate
- 0.047 dm³/sec (83xx-Series)
- 0.16 dm³/sec (4000-Series)
- 0.66 dm³/sec (8286-Series)
- 0.016 dm³/sec (9000-Series)
Flow Rate (scfm)
- 0.1 scfm (83xx-Series)
- 0.35 scfm (4000-Series)
- 1.4 scfm (8286-Series)
- 0.035 scfm (9000-Series)
Maximum Inlet Pressure
- 17.3 bar (250 psig)
Operating Temperature
- to +71°C (+160°F)
Port Size
- ⅛"
Port Type
- NPT, Compression Fitting
Pressure Control Range
- bar: 0 to 0.17, 0 to 0.34, 0 to 0.69, 0 to 1.03, 0 to 2.06, 0 to 4.13, 0 to 6.89
- psig: 0 to 2.5, 0 to 5, 0 to 10, 0 to 15, 0 to 30, 0 to 60, 0 to 100
Product Type
- High Precision Pressure Regulator
