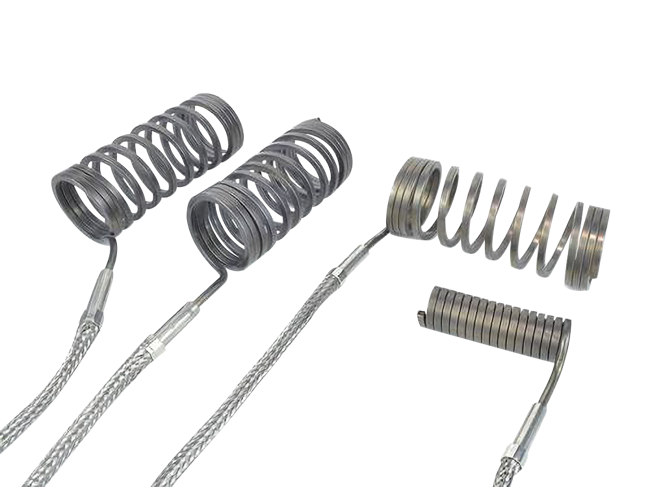

Viper Coil Heater
Brand: Backer Marathon IncWhen highly focused heat is required, and a very low profile is imperative, coil heaters are the best cost-effective option.
Coil heaters may be used to concentrate the heat on specific segments, or the coil may be spread to equalize the temperature across the object to be heated.
Backer Marathon stocks a wide variety of coil heaters, OEM replacement heaters, and will provide custom configurations upon request.
Features- Flexible Teflon lead wire
- Stainless Steel Sheath
- Nickel Chromium resistance wire with highly compacted MgO fill
- Available with or without internal thermocouples (Type J and Type K available for precise temperature control)
- 1/8" x 1/8" element cross section
- Seal welded end
- Ground Wire
- 36" Stainless steel braid over leads
- 0.130 square cross section is standard
Specifications
Brand
Coil I.D.
- 1/2" to 1-1/2"
Coil Length
- 0.975" to 9"
Lead Length
- 36"
- Stainless Steel
Cross Section
- 0.13” x 0.13”
Watts
- 175to 1,400 W
Voltage
- 240 V
