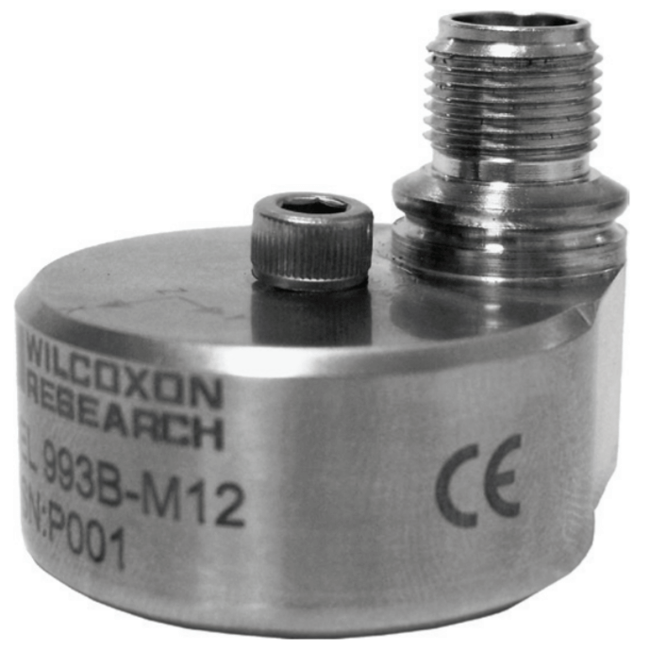

Wilcoxon Sensing Technologies General Purpose Hermetic Triaxial Accelerometer, Model 993B-7-M12

Model 993B-7-M12 General-Purpose Hermetic Triaxial Accelerometer

Brand: Wilcoxon Sensing Technologies
Add Product to My Catalog

Triaxial accelerometers consist of three sensing elements within a single housing. Wilcoxon’s 99B-7-M12 senses three mutually perpendicular axes at a single mounting location. Proponents of multi-axial sensors cite the increased speed of data collection, inherently consistent readings and reduction in wiring for permanent installations. Triaxial sensors monitor machinery with limited mounting areas, providing a full spectrum of data including horizontal, vertical and axial vibration levels at a single mounting location.

The 993B-7-M12 is hermetically sealed and comes with the industry popular M12 connector.
Features
  • 3 axis simultaneous sensing
  • Broad frequency response
  • Captive mounting screw
  • Hermetically sealed
  • ESD-protected
  • Reverse wiring protection
  • Manufactured in an approved ISO 9001 facility

Specifications

Brand

Approvals & Certifications

  • CE

Approvals & Certifications

  • ISO 9001

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Cable (4-Conductor, Shielded)
  • Mating Connector: M12S
  • Output Connector: 4-Pin, M12 Style

Enclosure, Body Material

  • 316L Stainless Steel

Frequency

  • Frequency Response (X & Y Axes, ± 10 %): 2 to 7,000 Hz
  • Frequency Response (Z Axis, ± 3 dB): 2 to 10,000 Hz
  • Resonance Frequency: > 35 kHz

Mounting

  • 10-32 Captive Screw Mount

Noise

  • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 160 µg
  • Electrical Noise, Equivalent G, Nominal (Spectral: 1,000 Hz): 1.5 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µg/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 100 Hz): 2.0 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1 %

Output Impedence

  • Maximum 400 Ω

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-5 mA

Range

  • Acceleration Range: 60 G Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity, Max.
  • Electromagnetic Sensitivity, Equivalent G, Max.
  • Sensitivity, ± 10 %, 25° C (77° F): 100 mV/g
  • Transverse Sensitivity: Max. 7 % of Axial

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Turn-On Time

  • < 1 second

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage: 12 Vdc
