Fike Universal Valve Operator Kit

Universal Valve Operator Kit

Brand: Fike Corporation
Add Product to My Catalog

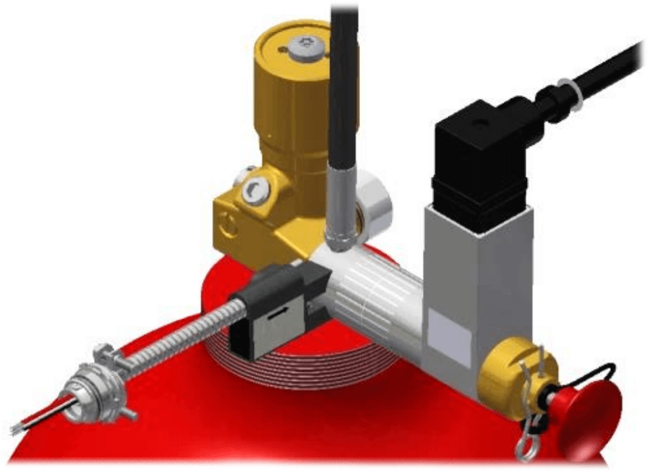

The Universal Valve Operator (UVO) provides means to electrically or manually activate the Fike ProInert Valve inert gas cylinder by providing the force required to extend a piston that will open the valve, allowing the agent to be released from the cylinder.

The UVO can be activated electrically via a signal from a control panel or manually by depressing red manual strike button.

The Universal Valve Operator Supervisor (UVOS) is used to monitor the presence of the UVO.

When installed between the valve and the UVO, this supervises the position of the actuation device; when the UVO is removed from the container this will cause a “supervisory event” at the system control panel.
Features
  • Provides mean to operate up to 60 cylinders with one UVO
  • Can be reset without replacement parts or special tools
  • Simple to remove for easy of testing
  • Provides supervision of UVO placement required by NFPA 2001

Specifications

Brand

Approvals & Certifications

  • FM
  • UL

Electrical - Free Leads

  • 22 AWG, 60”

Electrical Connectors

  • DIN Connector w/ Cable & 1/2” NPT for Conduit Connection

Enclosure, Body Material

  • Stainless Steel

Materials of Construction

  • End Cap: Brass

Supply Voltage

  • Normal Supply Voltage: 24 Vdc

Temperature Range

  • -20° to 48.9° C (-4° to 120° F)

Documentation

Data Sheets
