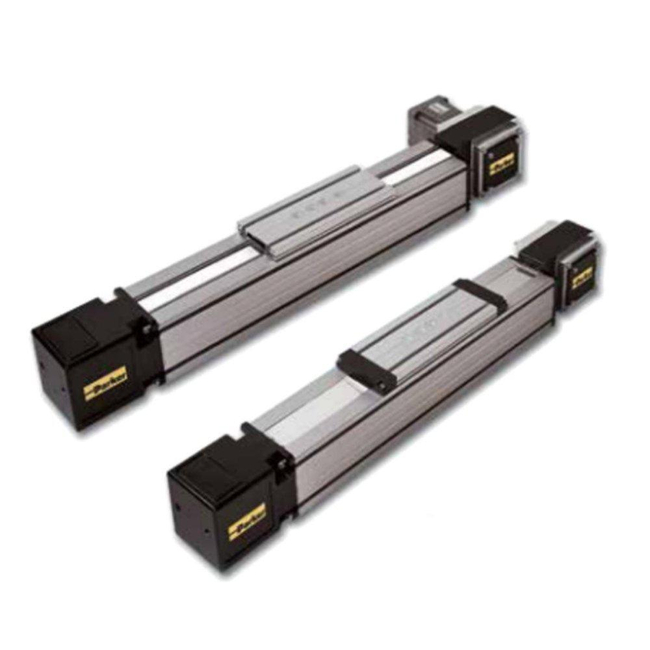

HPLAZ 180 Rack & Pinion Driven, Roller Wheel, Rodless Linear Actuator
Brand: Parker HannifinThe HPLA-Z offers the same rugged bearing design and industrially hardened structure as the HPLA, however the incorporation of a rack-and-pinion drive train allows for truly “endless” travel lengths.
This design utilizes Parker's HPLA180 series as the platform, allowing for significant structural rigidity and high normal loading.
The exceptional dynamic characteristics of this unit make it the ideal fit for high speed linear translation and positioning applications over long distances.
The HPLA-Z's rack drive system provides fast, highly repeatable positioning of the carriage.
The unique rack drive design offers all of the advantages of typical rack and pinion elements without the drawbacks.
The driven element is comprised of a short belt element inverted to track into the teeth of the rack.
By utilizing belt technology and providing pre-tension to the belt, drive backlash can be eliminated.
Additionally, the combination of a steel reinforced timing belt and aluminum rack provides for a safe and clean environment which requires no lubrication.
The HPLA-Z is ideal for overhead gantry robots, storage retrieval systems and other applications requiring long travels, high performance, and maintenance free operation.
Features- Long travels
- Independent multiple carriages on a single rail
- Roller wheel bearings for smooth high speed linear motion
- Truly unlimited travel
- T-slot mounting along actuator body and carriage
- Velocity up to 5 meters/sec
Specifications
Brand
Additional Protection Option
- None
Bearing Type
- Roller Wheel - Polyamide
Corrosion Resistant Option
- No
Drive Type
- Rack & Pinion
Idler Unit Option
- N/A
IP Protection Rating
- IP00
Linear Feedback Device
- Optional
Maximum Acceleration (Inch/S2)
- 393
Maximum Acceleration (m/S2)
- 10
Maximum Payload FZ (N)
- 1275
Maximum Speed (inch/sec)
- 200
Maximum Speed (m/sec)
- 5
Maximum Stroke (inch)
- 341 (Single Profile) / 1968 (Max. by Splicing)
Maximum Stroke (mm)
- 8680 (Single Profile) / 50000 (Max. by Splicing)
Maximum Thrust FX (Lbs)
- Linear Actuator HPLAZ180_EMN_Desc_Max.
Position Repeatability (± Inch)
- 0.002
Position Repeatability (± mm)
- 0.05
Profile Width (mm)
- 180
Series
- HPLA
Typical Payload FZ (N)
- 100 - 1275
