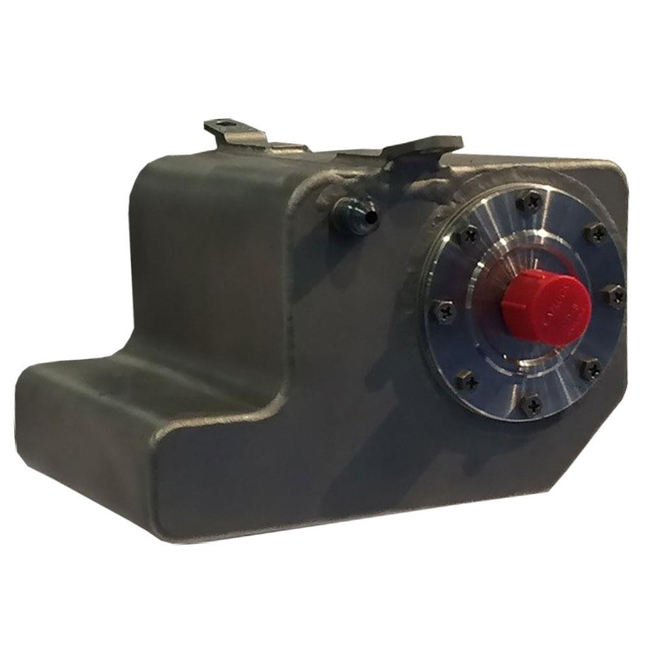

Ecology Tank
Brand: Parker HannifinThe ecology tank is designed to capture fluids during aircraft operation to allow the fluids to be disposed of properly after the flight.
Ecology tanks are designed to capture fluids in a variety of different applications. Parker has fielded designs for fuel, oil, and hydraulic systems.
The fuel ecology tanks capture fuel during engine shutdown and return the oil to the fuel tanks during the start of the engine.
Oil and hydraulic ecology tanks capture small amounts of oil during flight that can be returned to the tank or drained before the next flight.
Features- Designed to meet the FAA 15 minute 2,000° fireproof requirement
- Integrated backflow check valve
- Integrated fuel-shutoff valve
- Integrated jet pump
- Highly reliable
- No maintenance required
Specifications
Brand
Cyclic Life
- Designed to Specifications, Lasting the Life of the Engine
Fluid Type
- Fuel, Engine Oil, Hydraulic Fluids, & Other
Material
- Stainless Steel, Aluminum, Composite, and/or Plastic, Depending on Customer Requirements
Oil Type
- All Jet Oils
Operating Temperature (°F)
- Designed to Specifications, All Tanks are Designted to Operate at -65° F & the High Temperature Range Depends on the Application
Volume (Gallons)
- Designed to Specification, 0.5 to 1 Gallon is Typical
Weight (Lbs)
- Designed to Specifications, Study Determines Lowest Weight based on Envelope
- Gas turbine engine fuel system
- Helicopter transmission oil system
- Helicopter flight control hydraulic system
