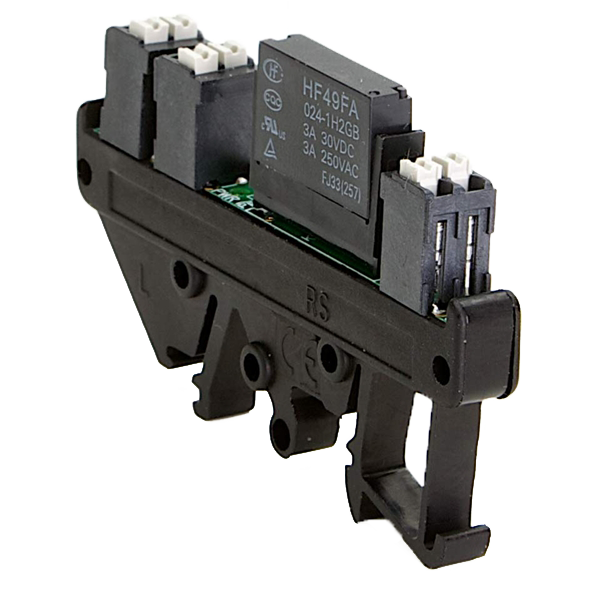

SIGNEXT-CRM Compact Relay Module
Brand: EmphatecThe CRM relay module was designed as an interposing relay for use between PLC / DCS digital outputs and field devices. It is a general-purpose relay with cULus approval. The relay is socket mounted.
The terminations used are of the “push-in” type which allows solid wires or wires with ferrules to be inserted directly without the need to open a clamp or torque a screw. Removing the wire is as simple as pressing a button and pulling the wire out.
The style of termination is very compact and reduces installation time. When used with stranded wires the clamp is first opened by pressing the button and then the wire is inserted and the button released. These are not insulation displacement terminations – the wire still have to be stripped.
Specifications
Brand
Approvals & Certifications
- CSA 22.2 No 14-10
- UL (C,US)
Electrical Rating
- 3 A at 230 Vac
- 3 A at 30 Vdc
Input
- Coil: 7.5 mA Typical at 24 Vdc
- Nominal: 18 Vdc
- Nominal: 2.5 Vdc
- Nominal: 24 Vdc
Isolation
- Input-Output Isolation: 2,000 Vac, 1 Minute
Mounting
- 32 mm or 35 mm DIN Rail
Operating Temperature
- Ambient Operating: -20° to 50° C (-4° to 122° F)
Operating Time
- Drop-Out: 5 milliseconds
- Pick Up: 10 milliseconds
Storage Temperature
- Storage Temperature: -20° to 70° C (-4° to 158° F)
Termination
- 24 to 16 AWG
