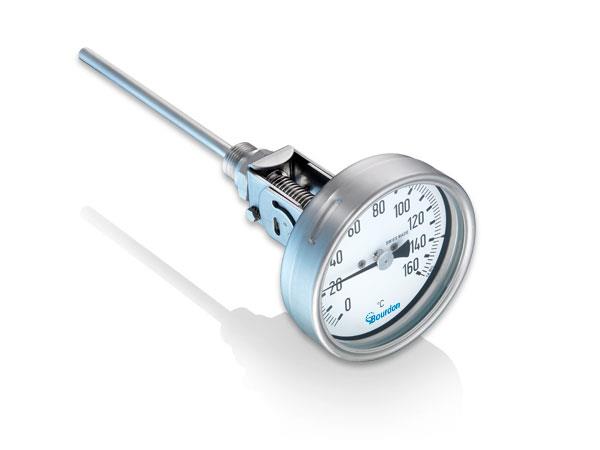

TBHI130 Bi-Metal Thermometer
Brand: Bourdon
Features
- For corrosive gasses and liquids
- Reinforced version for harsh conditions
- Class 1 and 2 according to EN 13190
- Wetted parts: Stainless steel
- Option: Case material 1.4404 (316L) for aggressive atmosphere
- Option: filling fluid in the case to avoid moisture and for applications with vibrations
Specifications
Brand
Accuracy According to EN 13190
- Above 250° C: Class 2
- Up to 250° C: Class 1
Approvals & Certifications
- ATEX
Bezel Ring Material
- Stainless Steel 1.4301, AISI 304
Case Material
- Stainless Steel 1.4301, AISI 304
Dial
- White, Aluminum
Immersion Tube Material
- Stainless Steel 1.4571, AISI 316Ti
IP Protection Rating
- IP68
Minimum Immersion Length for Immersion Tube 6 mm
- L2 ≥ 65 mm
Minimum Immersion Length for Immersion Tube 8 mm
- L2 ≥ 50 mm
Nominal Size
- 130 mm
Pointer
- Adjustable
- Black, Aluminum
Temperature Limitation > 400° C
- 100 % of Full Scale
Temperature Limitation ≤ 400° C
- 135 % of Full Scale
Temperature Range
- -100° to +1100° F
- -70° to +600° C
Thermometer
- 570 G
Vibrations
- 0.00015 G2/Hz (500 Hz)
- 0.015 G2/Hz (10 Hz)
- 0.015 G2/Hz (40 Hz)
- 0.15 mm (10 to 58 Hz)
- 2 G (58 Hz to 150 Hz)
- IEC 60068-2-6
- MIL-STD-810E, Meth. 514.4
Window Gasket
- Elastomer (Silicone)
Window Material
- Instrument Glass
- Oil & Gas / Chemical
- Water & Waste water
- Energy
