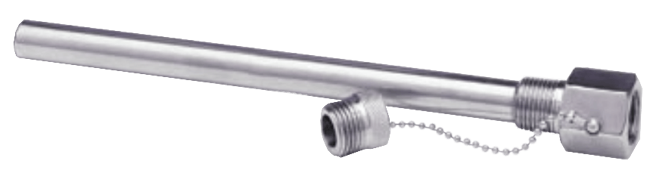

Model 385TWT General-Purpose Test Thermowell
Brand: Tel-Tru Manufacturing Co.Application: For bimetal thermometers; armored liquid-in-glass test thermometers; #14 gauge test thermocouples.
Features- Machined from solid bar stock for standard or high velocity requirements in a large selection of materials and coatings
- Designed and manufactured to assure perfect alignment with the thermometer stem
Specifications
Bore Size
- 0.385” (9.78 mm)
Insertion 'U' Length
- 10” (25.4 cm)
- 12” (30 cm)
- 2” (5 cm)
- 4” (10.1 cm)
- 6” (15.2 cm)
- 8” (20.3 cm)
Materials of Construction
- 304 Stainless Steel
- 316 Stainless Steel
- Brass (ASTM B-16)
- Carbon Steel (C-1018)
- Monel
Media
- Liquids
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Female
Plug Material
- Captive Plug: Brass
Stem Length
- 3-1/4” to 13-1/4” (8 to 33 cm)
