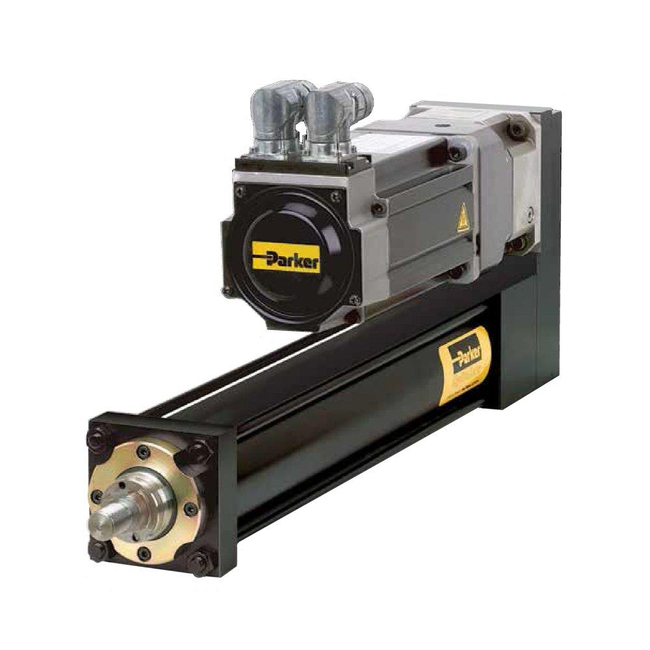

XFC075 Extreme-Force Screw Drive Electric Cylinder/Actuator

XFC075 Extreme-Force Screw Drive Electric Cylinder/Actuator

Brand: Parker Hannifin
Add Product to My Catalog

XFC075 actuators utilize roller screw technology to attain thrust forces up to 9000lbs.

These electric cylinders are made of an all steel construction and are built to a standard metric hydraulic cylinder design for easy integration into your system.

Specifications

Brand

Additional Protection Option

  • None

Corrosion Resistant Option

  • Yes (Stainless Steel)

Drive Type

  • Screw

IP Protection Rating

  • IP00

Maximum Acceleration (Inch/S2)

  • 773

Maximum Acceleration (m/S2)

  • 19.6

Maximum Speed (inch/sec)

  • 40

Maximum Speed (m/sec)

  • 1.02

Maximum Stroke (inch)

  • 55.1

Maximum Stroke (mm)

  • 1150

Maximum Thrust (Lbs)

  • 9000

Maximum Thrust (N)

  • 40000

Operating Temperature (°C)

  • -23° to +73° C (Standard Seals) / -23° to +110° C (Fluorocarbon Seals)

Operating Temperature (°F)

  • -10° to +165° F (Standard Seals) / -10° to +230° F (Fluorocarbon Seals)

Position Repeatability (± Inch)

  • 0.001

Position Repeatability (± mm)

  • 0.03

Profile Width (mm)

  • 76.2

Rod End Dimension

  • 75 mm Bore

Series

  • XFC

Documentation

Brochure

Document
