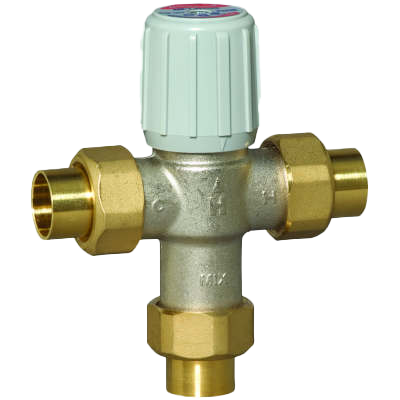

AM100-US-1LF/U 1/2 inch Sweat Union Mixing Valves

Brand: Resideo Technologies Inc

AM-1 series adjusts, maintains, and limits the hot water temperature settings to provide comfort and protect equipment at home.

While increasing the amount of safe, usable hot water, it efficiently offers anti-scald, anti-chill protection.
  • Features Dual Purpose Mixing or Diverting Values
  • Offers Constant Water Temperature Under Changing Operating Conditions
  • Temperature is Limited at Any Point and if Cold Water Supply is Interrupted, Flow Reduction Occurs in Seconds
  • Provides Reliable Performance at Minimum Flow of 05 GPM and Proportional Valve for Simultaneous Control of Hot and Cold
  • Designed for Easy Maintenance and Teflon® Coating Prevents Mineral Build-up and Extends Life
  • Lead Free Products Have Products Numbers End in LF
  • Available Temperature Gauge Adapter in Lead-free Brass Material with EPDM O-Ring.

1 - 1 of 1 Part Numbers
AM100-US-1LF/U
AM100-US-1LF/U
1/2 inch Sweat Union Mixing Valves
1 - 1 of 1 Part Numbers

Specifications

Includes

  • Check valves on hot and cold ports

Comments

  • Low lead Content <.25% by weighted average

Approvals, Canadian Standards Association

  • CSA Certified

Approvals, Others

  • NSF/ANSI; IAPMO

Approvals, ASSE

  • 1017

Connection Type

  • Union Sweat

Minimum Flow Rate

  • 0.5 gpm
  • 1.9 lpm

Pipe Size

  • 1/2 in.
  • DN15

Fluid Temperature

  • Cold Inlet: 4 °C to 27 °C: Hot Inlet: 49 °C to 82 °C; Mixed Outlet: 21 °C to 63 °C
  • Cold Inlet: 39 °F to 80 °F; Hot Inlet: 120 °F to 180 °F; Mixed Outlet: 70 °F to 145 °F

Capacity

  • 3.9 Cv

Body Materials

  • Teflon-Coated, Nickle-Plated Low Lead Brass

Valve Type

  • Mixing Valves

Packing Materials

  • EPDM O-rings

  • Scald Prevention in Domestic Water
  • Nursing Homes
  • Public Facilities
  • Automatic Faucets
  • Industrial Applications
  • Photo Processing
