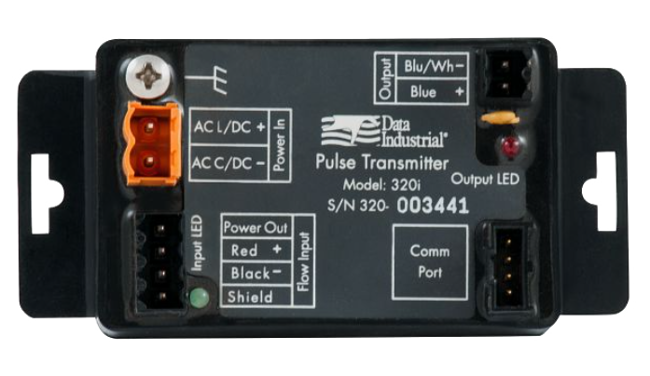

Type 320 Pulse Transmitter

Brand: Badger Meter

The Model 320 from Badger Meter is a compact, programmable transmitter designed to accept relatively fast unscaled raw pulses from devices like flow sensors, and then output slow-scaled pulses of programmable width, pulse resolution and units of measure.

In addition to our standard flow sensors, the Model 320 can also accept a sine wave signal, making it a versatile transmitter for numerous applications.

Specifications

Brand

Power Requirements

  • 12…28 VAC RMS, 85 mA max
  • 12…40 VDC, 30 mA max
  • Reverse and over Voltage Protected

Input Frequency

  • 0.4…10 kHz

Transient Suppression

  • Complies with IEC-801-4 Electrical Burst, Fast Transient Specification

Pulse Output

  • Isolated solid state switch in any standard or custom flow
  • Adjustable 50 mS to 1.0 second pulse output width in 50 mS increments
  • Maximum sinking current: 100 mA at 36 VDC

Temperature

  • Operating: –20…158 °F (-29...70 °C)
  • Storage: –40…185 °F (-40...85 °C)

  • Building Design, HVAC & Plumbing
  • Process & General Industry
