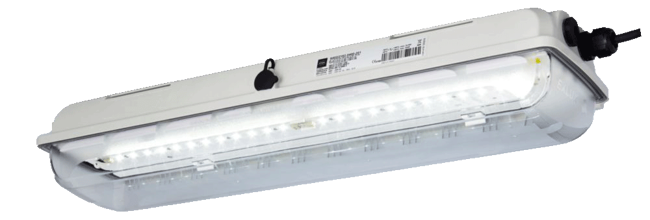

Linear Luminaire with LED EXLUX L402/2
Brand: R. STAHL AGThe EXLUX L402/2 luminaire is designed for industrial use and can be fitted to the ceiling, a pole, or alternatively, it can be suspended.
A bright light for not much energy is what you get with this efficient LED technology, which offers the added benefit of increased service life – this can be as much as 100,000 hours.
The plastic enclosure is easily to open by a central lock.
Features- Highly resistant industrial design
- Linear luminaire with long-life, efficient LED technology (up to 115 lm/W)
- Lightweight yet extremely robust, with an impact strength rating of IK10
1 - 4 of 4 Part Numbers
263148
Highly resistant industrial design
Linear luminaire with long-life, efficient LED technology (up to 115 lm/W)
Lightweight yet extremely robust, with an impact strength rating of IK10
Ambient Conditions
- Ambient temperature - -30 °C ... +55 °C
- Ambient temperature °F - -999 - -999 °F
- Ambient temperature max. - +55 °C
- Ambient temperature min. - -30 °C
Components
- Ballast - VG Luxtronic 80 W 350 mA
- Drilled holes - 3 x M20
- Screw connections - Can be ordered as accessories
- Stopping plug - Can be ordered as accessories
- Threaded plate - 2x SS430 stainless steel
- Through wiring - with 5 conductors 2.5 mm2
Electrical Data
- Ex version - Industrial design
- Frequency range - 50 - 60 Hz
- Rated operational voltage AC - 220.00 - 240.00 V
- Rated operational voltage DC - 200.00 - 250.00 V
Explosion Protection
- Ambient temperature °C - -30 - 55 °C
- Languages of the documentation - English, German
- Note: Through wiring - max. 3x16 A
General
- Functional Description - The EXLUX L402/2 luminaire is designed for industrial use and can be fitted to the ceiling, a pole, or alternatively, it can be suspended. A bright light for not much energy is what you get with this efficient LED technology, which offers the added benefit of increased service life – this can be as much as 100,000 hours. The plastic enclosure is easily to open by a central lock.
- Highlights - Highly resistant industrial design Linear luminaire with long-life, efficient LED technology (up to 115 lm/W) Lightweight yet extremely robust, with an impact strength rating of IK10
- Product Description - Linear luminaire With LED GRP industrial design
- Product Type - L402/2284-5500-150
- Title Product Variant Technical Data - L402/2284-5500-150 LED LF Zone 2
- WebCode - L402A
Lighting Data
- Colour rendering - ≥ 80
- Colour temperature - 5000 K
- Lamp - LED
- Lamp wattage - 52 W
- Light colour - neutral white
- Light distribution - 120°x120° with diffusing glass
- Luminaire efficacy - 98 Im/W
- Luminous flux - 5100 lm
- Number of Lamps - 1
Mechanical Data
- Connection terminals finely-stranded max. - 4.00 mm²
- Connection terminals solid max. - 4.00 mm²
- Degree of protection IP (IEC 60598) - IP66/IP67
- Design size - 4
- Diffuser - With diffuser
- Enclosure colour - light grey (RAL 7035)
- Enclosure material - Polyester resin, Glass fibre reinforced
- Height - 125.000 mm
- Impact strength (IK code) - IK10 (IEC 62262)
- Installed terminal strip - PE + N + L1 + L2 + L3
- Length - 1310.000 mm
- Material translucent cover - Polycarbonate
- Protection class - I (with inner PE connection)
- Sealing material - Silicone
- Type of connection cable - Finely stranded, solid, stranded
- Version - special version
- Weight - 6.000 kg
- Width - 184.000 mm
263149
Highly resistant industrial design
Linear luminaire with long-life, efficient LED technology (up to 115 lm/W)
Lightweight yet extremely robust, with an impact strength rating of IK10
Ambient Conditions
- Ambient temperature - -30 °C ... +55 °C
- Ambient temperature °F - -999 - -999 °F
- Ambient temperature max. - +55 °C
- Ambient temperature min. - -30 °C
Components
- Ballast - VG Luxtronic 80 W 350 mA
- Drilled holes - 3 x M25
- Material of screw connections - Polyamide, black
- Screw connections - 2 x M25 Ø 7 – 17 mm
- Stopping plug - 2 x M25 x 1.5
- Stopping plug material - Polyamide, black
- Threaded plate - 2x Plastic
- Through wiring - with 5 conductors 2.5 mm2
Electrical Data
- Ex version - Industrial design
- Frequency range - 50 - 60 Hz
- Rated operational voltage AC - 220.00 - 240.00 V
- Rated operational voltage DC - 200.00 - 250.00 V
Explosion Protection
- Ambient temperature °C - -30 - 55 °C
- Languages of the documentation - English, German
- Note: Through wiring - max. 3x16 A
General
- Functional Description - The EXLUX L402/2 luminaire is designed for industrial use and can be fitted to the ceiling, a pole, or alternatively, it can be suspended. A bright light for not much energy is what you get with this efficient LED technology, which offers the added benefit of increased service life – this can be as much as 100,000 hours. The plastic enclosure is easily to open by a central lock.
- Highlights - Highly resistant industrial design Linear luminaire with long-life, efficient LED technology (up to 115 lm/W) Lightweight yet extremely robust, with an impact strength rating of IK10
- Product Description - Linear luminaire With LED GRP industrial design
- Product Type - L402/2182-5500-250
- Title Product Variant Technical Data - L402/2182-5500-250 LED LF Zone 2
- WebCode - L402A
Lighting Data
- Colour rendering - ≥ 80
- Colour temperature - 5000 K
- Lamp - LED
- Lamp wattage - 28 W
- Light colour - neutral white
- Light distribution - 120°x120° with diffusing glass
- Luminaire efficacy - 91 Im/W
- Luminous flux - 2550 lm
- Number of Lamps - 1
Mechanical Data
- Connection terminals finely-stranded max. - 4.00 mm²
- Connection terminals solid max. - 4.00 mm²
- Degree of protection IP (IEC 60598) - IP66/IP67
- Design size - 2
- Diffuser - With diffuser
- Enclosure colour - light grey (RAL 7035)
- Enclosure material - Polyester resin, Glass fibre reinforced
- Height - 125.000 mm
- Impact strength (IK code) - IK10 (IEC 62262)
- Installed terminal strip - PE + N + L1 + L2 + L3
- Length - 700.000 mm
- Material translucent cover - Polycarbonate
- Protection class - I (with inner PE connection)
- Sealing material - Silicone
- Type of connection cable - Finely stranded, solid, stranded
- Version - special version
- Weight - 4.300 kg
- Width - 184.000 mm
263150
Highly resistant industrial design
Linear luminaire with long-life, efficient LED technology (up to 115 lm/W)
Lightweight yet extremely robust, with an impact strength rating of IK10
Ambient Conditions
- Ambient temperature - -30 °C ... +55 °C
- Ambient temperature °F - -999 - -999 °F
- Ambient temperature max. - +55 °C
- Ambient temperature min. - -30 °C
Components
- Ballast - VG Luxtronic 80 W 350 mA
- Drilled holes - 3 x M20
- Screw connections - Can be ordered as accessories
- Stopping plug - Can be ordered as accessories
- Threaded plate - 2x SS430 stainless steel
- Through wiring - with 5 conductors 2.5 mm2
Electrical Data
- Ex version - Industrial design
- Frequency range - 50 - 60 Hz
- Rated operational voltage AC - 220.00 - 240.00 V
- Rated operational voltage DC - 200.00 - 250.00 V
Explosion Protection
- Ambient temperature °C - -30 - 55 °C
- Languages of the documentation - English, German
- Note: Through wiring - max. 3x16 A
General
- Functional Description - The EXLUX L402/2 luminaire is designed for industrial use and can be fitted to the ceiling, a pole, or alternatively, it can be suspended. A bright light for not much energy is what you get with this efficient LED technology, which offers the added benefit of increased service life – this can be as much as 100,000 hours. The plastic enclosure is easily to open by a central lock.
- Highlights - Highly resistant industrial design Linear luminaire with long-life, efficient LED technology (up to 115 lm/W) Lightweight yet extremely robust, with an impact strength rating of IK10
- Product Description - Linear luminaire With LED GRP industrial design
- Product Type - L402/2182-5500-150
- Title Product Variant Technical Data - L402/2182-5500-150 LED LF Zone 2
- WebCode - L402A
Lighting Data
- Colour rendering - ≥ 80
- Colour temperature - 5000 K
- Lamp - LED
- Lamp wattage - 28 W
- Light colour - neutral white
- Light distribution - 120°x120° with diffusing glass
- Luminaire efficacy - 91 Im/W
- Luminous flux - 2550 lm
- Number of Lamps - 1
Mechanical Data
- Connection terminals finely-stranded max. - 4.00 mm²
- Connection terminals solid max. - 4.00 mm²
- Degree of protection IP (IEC 60598) - IP66/IP67
- Design size - 2
- Diffuser - With diffuser
- Enclosure colour - light grey (RAL 7035)
- Enclosure material - Polyester resin, Glass fibre reinforced
- Height - 125.000 mm
- Impact strength (IK code) - IK10 (IEC 62262)
- Installed terminal strip - PE + N + L1 + L2 + L3
- Length - 700.000 mm
- Material translucent cover - Polycarbonate
- Protection class - I (with inner PE connection)
- Sealing material - Silicone
- Type of connection cable - Finely stranded, solid, stranded
- Version - special version
- Weight - 4.300 kg
- Width - 184.000 mm
