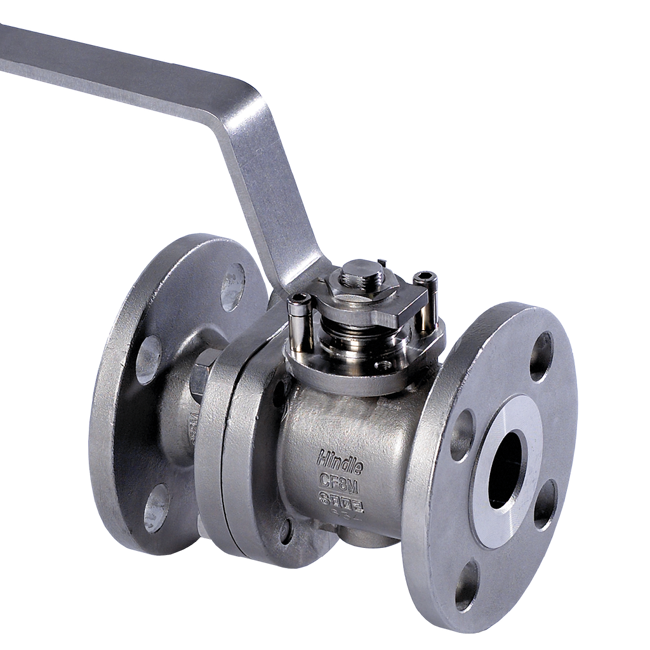

Hindle Model US300 UltraSeal Ball Valves
Brand: KTMA range of two piece full bore, flanged, free floating (seat supported) ball valves, incorporating mounting dimensions to BS EN 15081, featuring soft, metal and carbon seated designs.
Features- Two piece full bore design, flanged construction in carbon steel, stainless steel and special alloys.
- Designed in accordance with ASME B16.34, BS EN ISO 17292 & ISO 14313/API 6D.
- Floating ball design for bi-directional shut-off.
- Flexing soft seat design for superior shut-off across a range of pressures with minimum operating torque.
- Low temperature and cryogenic designs for service down to -196°C available on request.
- Spring energized metal and carbon seat designs permitting tight shut-off and positive cavity pressure relief.
- Fused hard nickel alloy, chromium Carbide or Tungsten Carbide coated seat and ball designs for abrasive and high temperature service.
- Hard carbon seat design for medium temperature applications.
- High integrity shaft seal minimizing the potential for atmospheric leakage.
- Fugitive emission performance to BS EN ISO 15848-2 class A.
- Corrosion resistant trim. Standard valves incorporate balls and shafts of stainless steel for long service life.
- Fire test certified. All sizes and pressure ratings are covered by approved certification.
Specifications
Brand
Approvals & Certifications
- Lloyd's Register, Fire Safe, CE, American Bureau of Shipping Shipboard, ABS, Fugitive Emission, NACE, PED, Natural Gas Certified
Body Design
- Long Pattern, Side Entry
End Connection
- Flanged
Material
- Stainless Steel, Stainless, Duplex, Carbon Steel, Aluminum Bronze, 316 Stainless Steel, Alloy, Super Duplex, Inconel, Hastelloy, Monel
Media
- Water Glycol, Water, Vacuum, Steam, Specialty Gases, Other, NH₃ (Anhydrous Ammonia), NH₃, Oxygen, Natural Gas, Aggressive Liquids & Gases, Air, Air, Inert Gas, Ammonia, CNG, Cryogenic, Fuel Oil, Hot Water, Light Oil, Liquid, Liquid Propane, Liquid Propane
Operating Temperature
- -330° to 842° F (-200° to 450° C)
Pressure Class
- ASME
Process Connection Type
- 150 RF, 300 RF, Class 150 RF, Class 300 RF, Flanged
Seat / Seal Type
- Soft, Ball, Cryogenic, High Performance, Soft Seal
Shutoff Class
- Class VI (FCI 70-2), Zero Leakage, API 598
Standards
- ASME B16.34, API 608
Stem
- Adjustable Packing, Live Loaded
Valve Size Standard
- NPS, DN
Valve Type
- Ball, Ball Valve, Floating Ball Valve
- Brewing
- Boilers
- Blower
- Bioreactor
- Biomass Boiler & Power Boiler
- Facilities & Process Utilities
- Bulk Storage
- FPSO
- Fuel Gas
- Fuel Management Systems
- Fueling, Gas Gathering & Compression
- General Service
- Geothermal
- Burner Manageme
