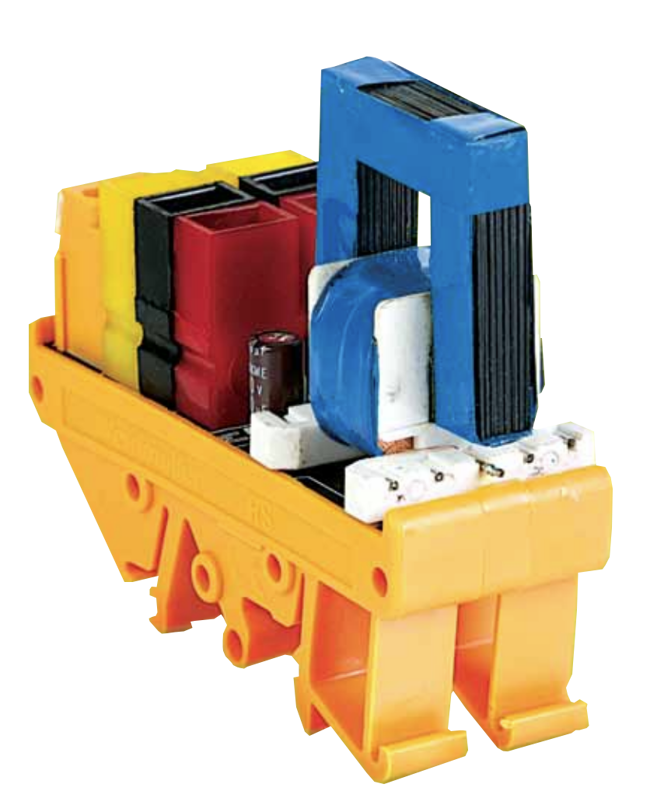

INSTALINK ACCS AC Current Sensing Module.png

INSTALINK ACCS AC Current Sensing Module

Brand: Emphatec
Add Product to My Catalog

The INSTALINK- ACCS is used to indicate loads such as heaters, lamps, motors, etc. are drawing current.

In processes such as plastic mounding the undetected failure of a heater can lead to rejected parts and lost production time.

This module would provide a digital output via a relay contact to confirm that a heater is drawing a current and has not failed in an open circuit condition.
Features
  •  Provides indication a load is drawing a current

  •  On-board current transformer

  •  Relay output

    • Specifications

    Brand

    Approvals & Certifications

    • (CSA 22.2 No.14-95) E256770
    • UL (C,US)

    Current

    • Switching Threshold: 0.25-1.2 A

    Input

    • 10 A, Max.

    Isolation

    • Relay Contact to DC Supply: 1,500 Vrms

    Mounting

    • 32 mm or 35 mm DIN Rail

    Operating Temperature

    • -20° to 60° C (-4.6° to 140° F)

    Operating Time

    • Switching Time: 12.5 milliseconds at 200 % of Switching Threshold
    • Switching Time: 40 To100 milliseconds at Switching Threshold

    Output

    • 1 A, Max.
    • 30 Vdc

    Supply Voltage

    • 24 Vdc at 11 A Nominal

    Switch Type

    • SPDT

    Termination

    • 24 V Supply: 26 to 12 AWG
    • Contacts: 28 to 14 AWG
    • Cross Connection: 16 to 14 AWG
