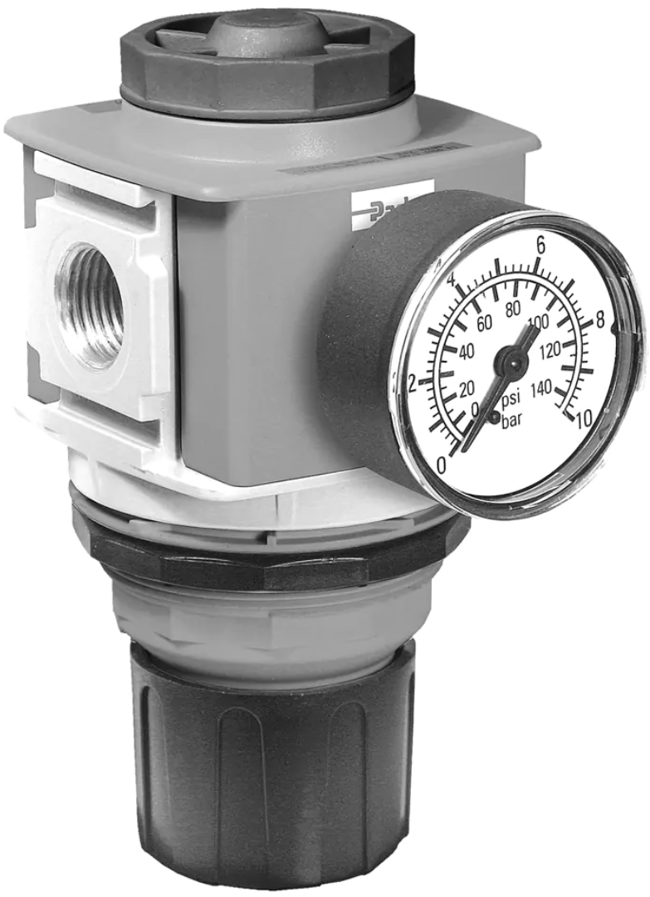

Transair Pressure Regulators

Brand: Transair

Parker's line of pressure regulators offers a quick response to regulating pressure.

Every pressure regulator comes equipped with a detailed gauge for accurate pressure control.

These devices are essential for compressed air applications where the flow of air needs to be controlled entering the point of use.

Through the use of connector brackets, these pressure regulators can attach to other Parker air preparation products.
Features
  • Integral 1/2", 3/4", or 1" NPT Ports
  • Robust, Lightweight Aluminum Construction

Specifications

Brand

Flow Rate

  • 165 to 680 scfm
  • 78 to 321 dm³/sec

Port Thread Size

  • 1/2” to 1”

Maximum Operating Pressure

  • 20 bar
  • 300 psig

Maximum Relief Pressure

  • 10 bar
  • 145 psi

Minimum Operating Temperature

  • -40° F, -40° C

Maximum Operating Temperature

  • 150° F, 65.5° C

Body Material

  • Aluminum

Adjustment Screw Material

  • Material Dependent on Selection

Cap Material

  • ABS

Bonnet Material

  • Material Dependent on Selection

Diaphragm Material

  • Material Dependent on Selection

Valve Material

  • Material Dependent on Selection

Spring Material

  • Material Dependent on Selection

Seal Material

  • Material Dependent on Selection

Screw Material

  • Material Dependent on Selection

Nut Material

  • Material Dependent on Selection

  • Compressed Air
