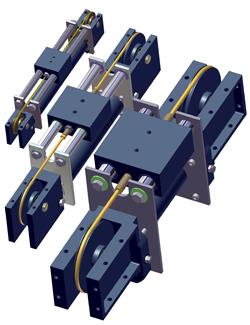

Guided Cable Cylinders

Brand: W.C. Branham

GCC - Guided Cable Cylinders from W.C. Branham consist of a double acting cable cylinder and a pre-engineered/packaged guide and load bearing support system for self guiding and self supported loads.

GCCs can be configured with reed switches, auto tensioners and caliper disc brake combinations for position holding.

GCCs are competitively priced with lower costs per inch of stroke, and have journal guide bearings and Linear ball bearings optional.

Features

9 bore sizes from 1/2 to 5 inches, Including 500 psi rated 2 inch bore
Standard fixed orifice cushioning for 3/4 and 1 inch bores, no cushion for 1/2 bore
Standard adjustable cushioning for all other sizes
Reed switch and piston magnet options
Lightweight, durable hardcoated I.D./O.D. aluminum tube
Standard Buna-N seals. Viton® brand seals available
Mil-spec rated cable providing millions of continuous cycles
5:1 safety factor
Low breakaway configurations
