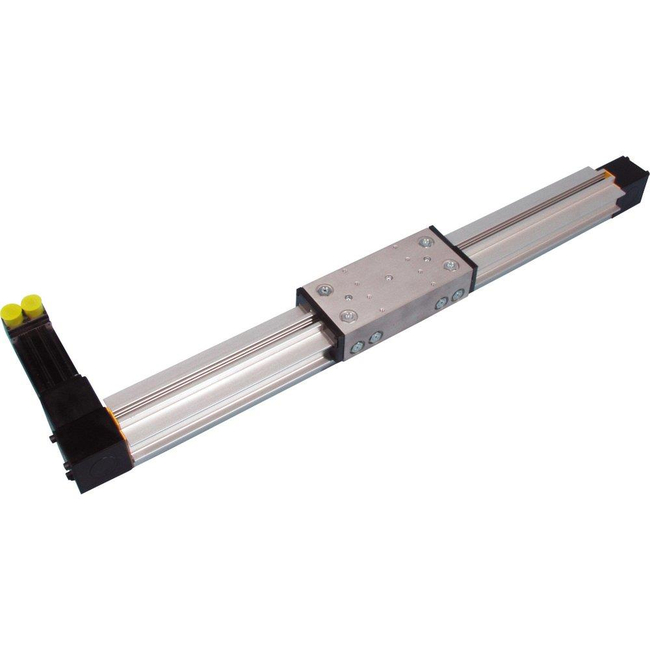

ERV5, Belt Driven, Roller Wheel, Rodless Linear Actuator
Brand: Parker HannifinThe ERV series of linear actuators expand on the ER family and bring an external bearing design, which spreads the bearing span and increases the overall load capacity.
The ERV is an extremely rugged and industrially hardened linear actuator utilizing the same roller wheel technology as the industry leading HPLA and HLE products.
The bearing wheels are pre-loaded to eliminate play in the system and strategically located along the carriage to evenly distribute load across the length of the carriage.
Specifications
Brand
Additional Protection Option
- None
Bearing Type
- Roller Wheel - Polyamide
Corrosion Resistant Option
- No
Drive Type
- Belt
Idler Unit Option
- No
IP Protection Rating
- IP00
Linear Feedback Device
- No
Maximum Acceleration (Inch/S2)
- 386
Maximum Acceleration (m/S2)
- 9.8
Maximum Payload FZ (N)
- 1915
Maximum Speed (inch/sec)
- 200
Maximum Speed (m/sec)
- 5
Maximum Stroke (inch)
- 238
Maximum Stroke (mm)
- 6050
Maximum Thrust FX (Lbs)
- 132
Maximum Thrust FX (N)
- 587
Position Repeatability (± Inch)
- 0.004 (Inline) / 0.008 (Parallel)
Position Repeatability (± mm)
- 0.10 (Inline) / 0.20 (Parallel)
Profile Width (mm)
- 58
Typical Payload FZ (N)
- 200 - 1915
