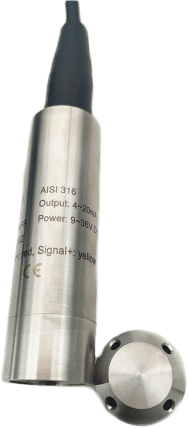

Water Tank Level Transmitter
Brand: Xi'an UTOP Measurement Instrument Co, LtdThe Water Tank Level Transmitter is made from stainless steel with rigid and robust construction.
The protection cover with a small hole can not only protect the diaphragm, but also let the liquids contact the diaphragm freely.
The unique sealing technology and nice assembly techniques guarantee ULB16 's outstanding quality & performance.
The product has a waterproof cable with vented tube for submerged applications.
Features- Rigid and robust construction, IP68 protection
- Wide application scope, long service life
- Reversed polarity protection and current limiting protection
- Intrinsic safety, or flame-proof safety optional
- PVC, PUR or PTFE cable for options
Specifications
Measuring Ranges
- 0 ~ 1 mH₂O...200 mH₂O
Overload Pressure
- 200 % Full Scale
Output Signal
- 4~20 mA, 0~5 V, 0~10 V, 1~5 V, 0.5 ~ 4.5 V
Accuracy
- 0.5 % Full Scale (Standard)
Load Resistance
- RL = (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)
Supply Voltage
- 12 ~ 36 Vdc or as you need
Compensated Temperature Range
- 0° ~ 70° C
Electrical Connection
- Ø 7.6 mm Shielded Cable with Vent Hose
Material of Wetted Part and Housing
- 304 Stainless Steel
Material of Pressure Membrane
- 316L
- ULB16 Water Tank Level Transmitter has IP68 Protection Grade, it is widely applied in Petroleum, Chemical Industry, Medicine, etc.
