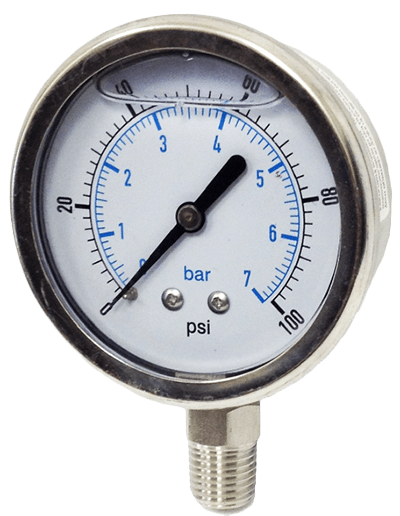

KC201/301 Series Pressure Gauge
Brand: Kodiak Controls
Kodiak’s 200/300 series pressure gauges are designed to meet the demands of heavy duty industrial applications.
KC201 Series
Kodiak’s 200 series pressure gauges are designed to meet the demands of heavy duty industrial applica-tions. This series gauge is commonly used on hydraulic and pneumatic applications, pumps, compressors, chillers, or any other application that has vibration or needs a hermetically sealed industrial pressure gauge.
KC301 Series
Kodiak’s 300 series pressure gauges are designed to meet the demands of heavy duty industrial applica-tions where brass wetted parts will not do. This series gauge offers 316SS wetted parts and is commonly used on hydraulic and pneumatic applications, pumps, chemical feed systems, R/O systems, or any corro-sive application where a stainless steel connection is needed.
Specifications
Brand
Dial Sizes
- 1.5”, 2”, 2.5”, 4”
Case
- 304SS
Wetted Parts
- 316 Stainless Steel
- Brass/Bronze
Bezel
- Crimped
Lens
- Polycarbonate
Pointer
- Black Aluminum
Connection (Lower Mount)
- 1.5” Dial -1/8” NPT
- 2” Dial -1/8” or 1/4” NPT
- 2.5” Dial -1/4” NPT
- 4” Dial -1/4” or 1/2” NPT
Scale
- Standard: psi/bar (x100 = kPa)
Accuracy
- 1.5” & 2” -3-2-3 %
- 2.5” -1.6 %
- 4” -1.6 %
Fill
- Glycerin (Standard)
- Dry Available
Temperature
- Dry: -30° F/180° F
- Filled: 20° F/160° F
