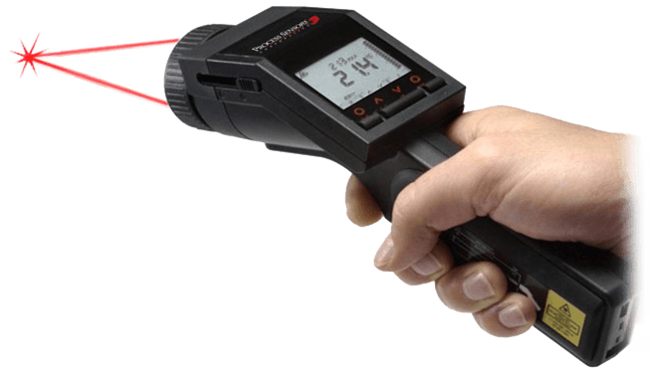

PSC-PLST Portable Laser Sight Thermometer
Brand: Process Sensors CorporationThe infrared PSC PLST supports the professional noncontact temperature measurement of objects as small as 1 mm in a temperature range between -35° and 900° C (31° to 1,652° F).
This thermometer can be used in characteristic applications like preventive maintenance, quality management, research and development and electronic design.
The precision of the crosshair laser sighting indicates the spot size at any distance with absolute exactness.
Features- The new performance standard of infrared thermometers: detecting spot sizes as small as 1 mm for the measurement of finest details
- Crosshair laser sighting marks real spot size at any distance
- Temperature range from -35° to 900° C (-31° to 1,652° F)
- Optical resolution 75:1
- Thermocouple input
- USB interface and graphic software with oscilloscope function for 20 data per second
- Flip display switches into most convenient viewing position
Specifications
Accuracy
- ± 0.75° C (± 1.35° F) or ± 0.75 % of Reading, whichever is greater
- Accuracy T/c Probe Input: ± 0.75° C (± 1.35° F) or ± 1 % of Reading, whichever is greater
Alarm
- Alarm Function: Audible & Visible High/Low Alarm
Ambient Temperature Range
- 0° to 50° C (32° to 122° F)
Approvals & Certifications
- Calibration
Approvals & Certifications
- CE
Battery Life
- 10 Hours with Laser on & without Backlight
- Battery Life Time: 25 Hours without Laser & Backlight
- Battery Life Time: 5 Hours with Laser on & 50 % Backlight Use
Communication
- USB
Display
- Bar Graph
- LCD with Backlight
Humidity
- 10 to 95 % RH, Non-Condensing
Power Requirement
- Two AA Alkaline Batteries
Range
- Spectral Response: 8 to 14 µm
Repeatability
- ± 0.5° C (± 0.9° F) or ± 0.5 %, whichever is greater
Resolution
- 0.1° C
- Optical Resolution: 75:1
Response Time
- 150 ms (95 % Signal)
Shock
- IEC 68-2-27: 50 G, 11 ms Duration, any Axis
Size
- Minimum Spot Size: 0.03" (1 mm)
Storage Temperature
- -30° to 65° C (-22° to 150° F)
Temperature Coefficient
- ± 0.05 % K
- 0.05 K/K
Temperature Range
- -35° to 900° C (-30° to 1,650° F)
UNF/UNC Connection
- Tripod Mount: 1/4"-20 UNC
Vibration
- IEC 68-2-6: 3 G at 11 to 200 Hz, any Axis
