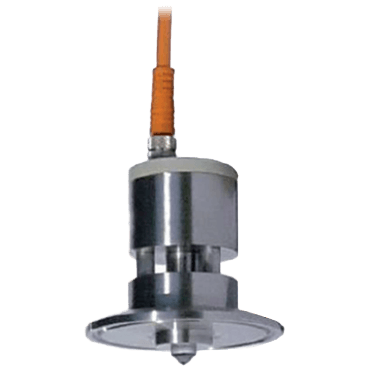

Type OPG061 Opto Electronic Level Switch
Brand: Trimod BestaThe opto-electronic sensor contains an infrared LED and a light receiver. Light from the LED is directed into a prism which forms the tip of the sensor.
With no liquid present, light from the LED is reflected within the prism to the receiver. When rising liquid immerses the prism, the light is refracted out into the liquid, leaving little or no light reach the receiver. Sensing this change, the receiver actuates electronic switching within the unit to operate an external alarm or control circuit.
Features- No moving parts
- Operating temperature: 175° C
- Simple to install
- Mounting direction: any
- Parts contacted with the medium are made of 1.4404 Stainless Steel
- Long service life
- High reliability
- Measuring accuracy ±0.5 mm
- Electrical connection: cable connection or plug
- Output PNP
- Closer or Opener
- Adjustable sensitivity for any application (e.g. foam detection )
Specifications
Brand
Enclosure, Body Material
- 316 Stainless Steel, 1.4404
- 316Ti Stainless Steel, 1.4542
Environmental Protection
- IP65
Tri-Clamp Connection
- 1-1/2” Tri-Clamp
- 2” Tri-Clamp
Accuracy
- ± 0.5 mm
Operating Pressure
- Maximum 25 bar
Operating Temperature
- -30° to 175° C
Ambient Temperature
- -30° to 80° C
Supply Voltage
- 12-32 Vdc
Supply Current
- Maximum 40 mA
