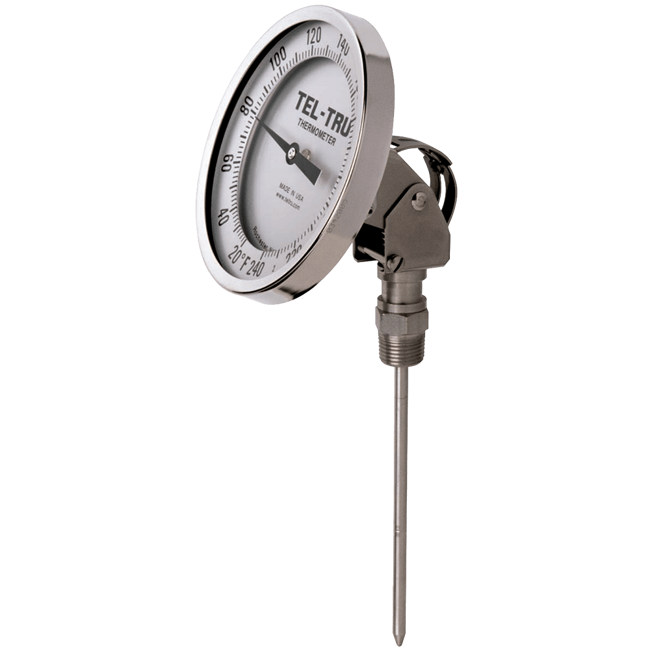

3", 4" & 5" Adjustable Angle Industrial Bi-Metal Thermometer
Brand: Tel-Tru Manufacturing Co.3", 4" and 5" Adjustable Angle Industrial Thermometers: Heavy Duty design, with versatile case and stem that can be adjusted to almost any angle for easy viewing.
Head can be rotated 360°.
Specifications
Accuracy
- ± 1 % of Full Span Per ASME B40.3 Grade A
Applications
- Chemical Industry
- Offshore Industry
- Pharmaceutical Industry
- Process & Power Industry
Diameter
- Stem Diameter: 0.236 to 0.375” (6 to 9.52 mm)
- Stem Diameter: 0.25” (6.35 mm) Standard up to 42” Stem
- Stem Diameter: 0.375” (9.5 mm) Standard over 42” Stem
Enclosure, Body Material
- External Parts: 304 Stainless Steel
Fill Material
- Silicone
Lens
- Glass Lens
Materials of Construction
- Brackets & Bellow: Heavy Duty Flexible Stainless Steel
- Dial: Anodized Aluminum with Large Black Numbers & Graduations
NPT Connection
- 1/2” NPT Male
Rotation
- Head: 360°
Seal Type
- Hermetic Seal as Per ASME B40.3 Dustproof & Leakproof
Size
- Dial: 3” (80 mm)
- Dial: 4” (100 mm)
- Dial: 5” (128 mm)
Stem Length
- 2-1/2” to 24” (63 to 610 mm)
Temperature Range
- -75° to 550° C (-100° to 1,000° F)
Wetted Materials
- Optional: 316 Stainless Steel
