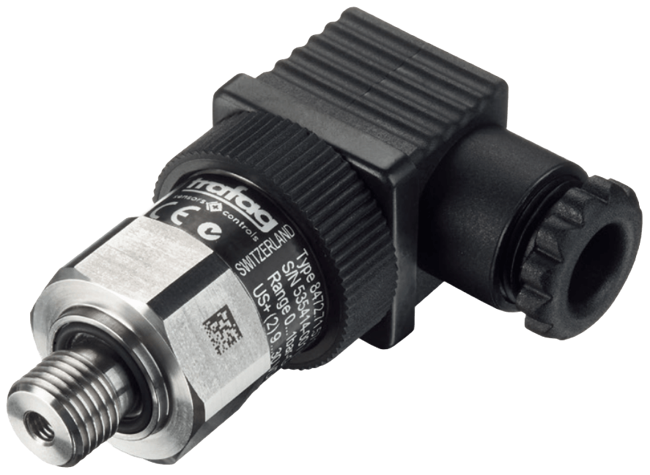

EPI 8287 Industrial Pressure Transmitter
Brand: Trafag Sensors & ControlsSwiss based Trafag is a leading international supplier of high quality sensors and monitoring instruments for measurement of pressure and temperature.
The industrial pressure transmitter EPI 8287 features the extremely robust and stable thin-film-on-steel sensor element from its well-proven predecessor EPI 8297.
In combination with the new inhouse developed ASIC TX it offers a wide temperature range up to 125° C (257° F) and triple overpressure safety which makes it the perfect solution for a wide range of demanding applications.
Features- Excellent long-term stability
- High resistance to over pressure
- Completely welded steel sensor system without additional seals
- Compact design
- Different accuracy classes
Specifications
Approvals & Certifications
- EMC
- IEC Emission: EN 61000-6-3, Immunity: EN 61000-6-2
BSP Connection
- G 1/2” Male
- G 1/4” Female
- G 1/4” Male
- 1/4” BSPT Male
Enclosure, Body Material
- AISI 316L Stainless Steel, 1.4401
- AISI 630 Stainless Steel, 1.4542
Environmental Protection
- IP65
- IP67
- IP68
Metric Connection
- M14 x 1.5 Male
NPT Connection
- 1/2” NPT Male
- 1/4” NPT Male
Output
- Output Signal: 0-10 Vdc
- Output Signal: 4-20 mA
Pressure Range
- bar: 0 to 600
- kPa: 0 to 60,000
- psi: 0 to 8,702
SAE Connection
- SAE J512
- SAE4 Male
UNF/UNC Connection
- 7/16”-20 UNF Female
- 7/16”-20 UNF Male
Wetted Materials
- Pressure Connection: AISI 316L Stainless Steel, 1.4401
- Sensor, Pressure Connection: AISI 630 Stainless Steel (1.4542)
- Machine Tools
- Hydraulics
- Industrial Applications
