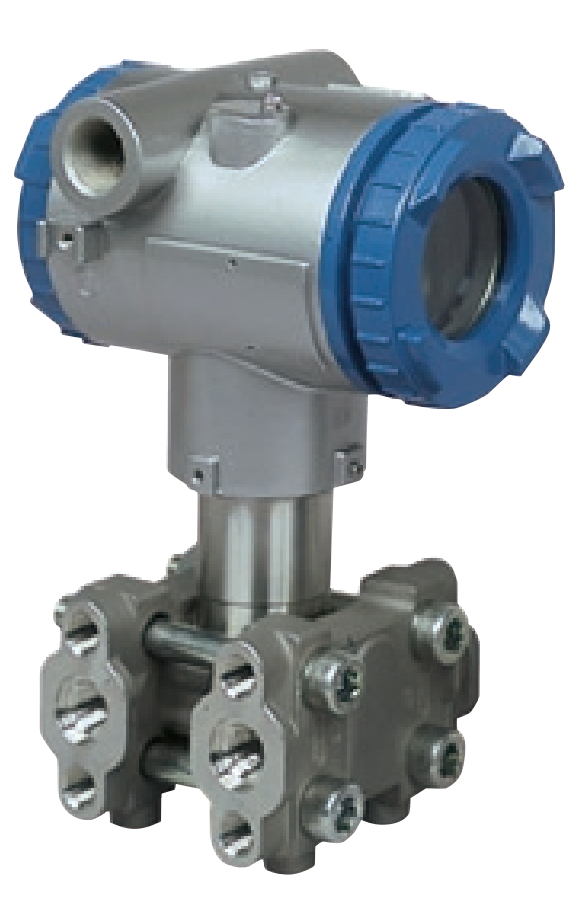

FCX-AIII Series FKC-5 Differential Pressure (Flow) Transmitter

Brand: Tokyo Keiso Co, Ltd

The FCX-AIII differential pressure (flow) transmitter accurately measures differential pressure, liquid level, gauge pressure and transmits a proportional 4-20 mA signal. The transmitter utilizes a unique micromachined capacitance silicon sensor with state-of-the-art microprocessor technology to provide exceptional performance and functionality.

Specifications

Approvals & Certifications

  • ATEX Flameproof, Intrinsic Safety, Typical N, Combined of Flameproof & Intrinsic Safety
  • CE
  • CSA Flameproof, Intrinsic Safety & Non-Incendive
  • EMC EN 61326-1: 2006
  • FM Flameproof, Intrinsic Safety & Non-Incendive, Flameproof & Intrinsic Safety
  • IEC Ex Flameproof, Intrinsic Safety
  • NAMUR NE43
  • NEPSI Flameproof, Intrinsic Safety, Combined of Flameproof & Intrinsic Safety
  • TIIS, Flameproof, Intrinsic Safety

BSP Connection

  • 1/4” BSPT Female

Diaphragm Material

  • 316L Stainless Steel
  • Hastelloy C-276 (MA276)
  • Monel
  • Tantalum

Drain, Vent Valves & Plug

  • 316 Stainless Steel
  • Hastelloy C-276 (MA276)
  • Monel

Enclosure, Body Material

  • Electronics: 316 Stainless Steel (SCS14 Per JIS G5121)
  • Electronics: Low Copper Die Cast Aluminum with Polyester Coating

Environmental Protection

  • IP67
  • NEMA 6
  • NEMA 6P

Fill Material

  • Fluorinated Fluid
  • Silicone Oil

Flange Material

  • Oval Flange: 316 Stainless Steel
  • Oval Flange: Carbon Steel

Metric Connection

  • M10
  • M12

NACE & NIST

  • NACE MR-0175

NPT Connection

  • 1/4”-18 NPT Female

Output

  • 4-20 mA DC

Pressure Range

  • bar: 0 to 200
  • kPa: 0.1 to 20,000
  • psi: 0.01 to 2,901

Pressure Type

  • Differential

UNF/UNC Connection

  • 7/16”-20 UNF

Wetted Materials

  • 316 Stainless Steel
  • Hastelloy C-276 (MA276)
  • Monel
  • Tantalum
