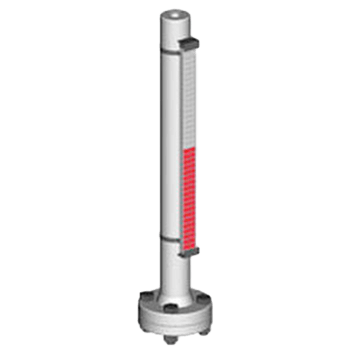

Type 23614-A Magnetic Level Indicator
Brand: Trimod BestaFor pressures up to psi: 87.02 (kPa: 600, bar: 6) and maximum 150° C (302° F), viscosity maximum 600 cSt.
Specifications
Brand
Approvals & Certifications
- Float Chamber Material: EN 10204: 2004-3.1 Certificate
- ISO 7-1 & ISO 228-1
BSP Connection
- G 1/2” Female (ISO 7-1/ISO 228-1)
Density Range
- ≥ 0.65 g/cm³
Distance
- Connecting Distance: 220.5” (5,600 mm)
Environmental Protection
- IP54
- IP65
- IP68
Gasket Material
- Fiber Compound Aramid
- Graphite Including Reinforcing Net in 316, 316L Stainless Steel at < 400° C (752° F)
- NBR
- Pure PTFE, Non-Reinforced
Materials of Construction
- Float Chamber, Damping Spring Top & Bottom: 316 Stainless Steel, 1.4401
- Float Chamber, Float: 316L Stainless Steel
- Float: NBR
- Indication Rail: Aluminum
- Indication Rail: Glass
- Indication Rail: Polycarbonate
- Valve: Pure PTFE
Nut & Bolt Material
- Screws & Nuts: A2-70 Stainless Steel (ISO 3506)
Operating Pressure
- psig: 87 (kPa: 600, barg: 6) - Max.
Operating Temperature
- -80° to 150° C (-112° to 302° F)
Sensor, Probe Style
- Float
Viscosity
- ≤ 600 cSt
