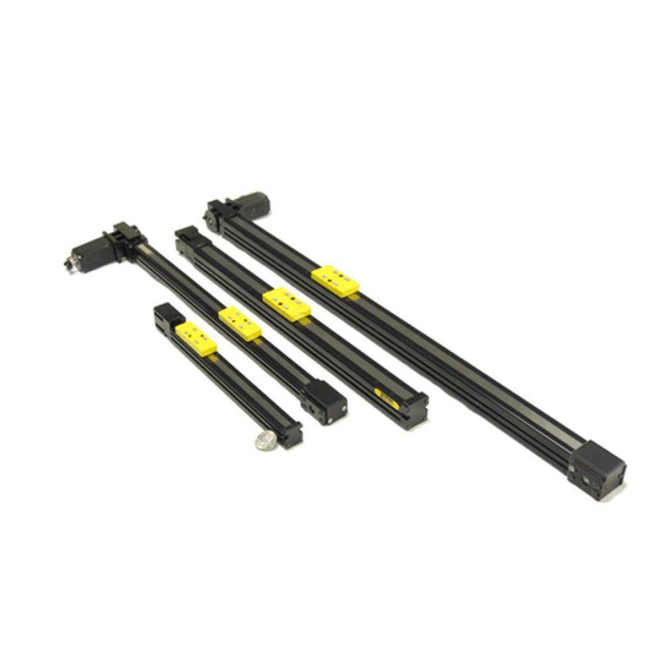

LCR 22 Belt Driven, Rodless Linear Actuator

LCR 22 Belt Driven, Rodless Linear Actuator

Brand: Parker Hannifin
Add Product to My Catalog

The LCR (Light Capacity Rodless) is a belt or leadscrew driven miniature linear actuator that has been design to answer the needs of OEM instrument builder.

Due to its design, the LCR is the ideal mechanical positioner for applications in the life science space requiring a high quality, miniature, and easy to use rodless linear actuator.

Flexible sizes, drive train types, bearings and strokes make it the ideal building block to base an instrument design around.

The LCR screw drive is ideal for applications requiring electronic control of light payloads and high thrust.

This make the LCR screw drive ideal for applications in analytical instruments, laboratory automation, micro titer automation, and liquid handling.

The LCR is also applicable to general purpose applications moving light payloads, and basic repeatability for point of purchase kiosks, part shuttling, and even conversion from rodless pneumatics to electric automation.
Features
  • Frame width of 22 mm to fit compact spaces
  • Positional repeatability of +/- 0.2 mm while maintaining max speeds of 30 mm/s
  • Integrated drive belt and guidance system to reduce overall footprint
  • Square rail and glider bushing bearing options for additional customer choice
  • Dovetail grooves for easy toe clamp mounting

Specifications

Brand

Additional Protection Option

  • None

Approvals & Certifications

  • Cleanroom Certified (Custom Option)

Bearing Type

  • Glider Bushing or Square Rail

Corrosion Resistant Option

  • No

Drive Type

  • Belt

Idler Unit Option

  • Yes

IP Protection Rating

  • IP00

Linear Feedback Device

  • No

Maximum Acceleration (Inch/S2)

  • 786

Maximum Acceleration (m/S2)

  • 20

Maximum Payload FZ (N)

  • 45 (Square Rail) / 25 (Bushing)

Maximum Speed (inch/sec)

  • 26.6

Maximum Speed (m/sec)

  • 0.68

Maximum Stroke (inch)

  • 20

Maximum Stroke (mm)

  • 500

Maximum Thrust FX (Lbs)

  • 5.6

Maximum Thrust FX (N)

  • 25

Position Repeatability (± Inch)

  • 0.008 (Square Rail) / 0.020 (Bushing)

Position Repeatability (± mm)

  • 0.2 (Square Rail) / 0.5 (Bushing)

Profile Width (mm)

  • 22

Series

  • LCR

Typical Payload FZ (N)

  • 0 to 45
