PX8000 Precision Power Scope

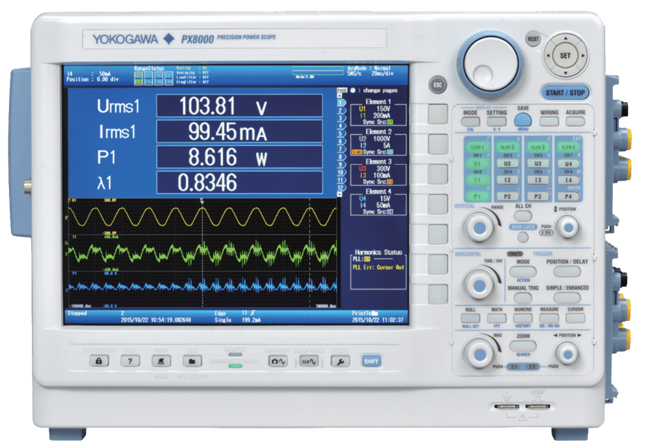

Brand: Yokogawa Electric CorporationThe PX8000 brings together Yokogawa’s world-leading expertise in power measurement with our long heritage in oscilloscope design to deliver a true test and measurement revolution: the world’s first precision power scope.
With the launch of the PX8000, R&D professionals need no longer compromise on their need for high-accuracy time-based power measurement, a need that conventional power analyzers and oscilloscopes were never designed to meet.
As more and more innovation focuses on energy consumption and the integration of electronics into power-based systems, so more and more engineers are demanding accuracy and precision from their power measurement.
Features- Insight - Precision power measurement gives true insights into energy consumption and performance
- Confidence - Proven, high-quality production means the PX8000 can be relied upon to deliver over extended periods of time
- Familiarity - Users experience a short learning curve thanks to features familiar to anyone who’s used to power measurements or oscilloscopes
Specifications
Accuracy
- ± (0.05 % of Reading) ± 1 Count Error (10 Nanoseconds) - the Observation Time is Greater or Equal to 300 times the Period of the Pulse
- ± (0.1 % of Reading + 0.1 % of Range), 45 Hz to 1 kHz
- ± (1.5 % of Reading + 0.6 % of Range)
- ± 0.1 % of Reading
- DC: ± 1 % of Range Typical - Analog
Approvals & Certifications
- AS
- BS
- CSA
- NBR
- UL
- VDE
Bandwidth
- DC to 10 MHz
- DC to 20 MHz
Channels
- 2-Channels, Switchable Analog or Pulse Input - Auxiliary (AUX) Module
- 8-Channels, Combination of Voltage/Current Modules & AUX Module
Communication
- Ethernet (1,000Base-T, 100Base-TX or 10Base-T) - Transmission System
- GPIB
- IRIG
- TCP/IP Protocols - Ethernet
- USB - Ports for Peripherals & Peripheral Interface
Display
- 1,024 x 768 x GA - Dots
- 10.4-Inch TFT Color LCD Display
- 5-Digits (Displaying 99,999) - Max.
- 6-Digit (999,999) - Max.
- 801 x 656 (Waveform Display) - Waveform Displaying Dot Size
- Bar Graph Display - the Amplitude of Each Harmonics when It is Harmonic Measurement
- Vector Display - Display the Phase Angle between the Fundamental Voltage Signal & Fundamental Current Signal as a Vector
Electrical Connectors
- BNC Connector - Input/Output EXT TRIG IN, OUT, CLK IN, Time Sync Signal Input
- D-Sub 15-Pin Receptacle - Video Output
- GP-IB: 24-Pin Connector
- Plug-In Input Module Style - Shape: Input
- Plug-In Terminal (Female for Voltage, Male for Current) - Input Terminal Typical
- RJ45 Modular Jack - Ethernet
- USB Typical B Receptacle
Frequency
- 1.8 Hz to 2 MHz - Displaying Range: Frequency Measurement Range
- 100 Hz to 20 kHz (Same as Zero-Cross Filter) - Measurement Filter, Frequency Filter
- 2 Hz to 1 MHz - Frequency Measurement Range
- 20 Hz to 409.6 kHz - Fundamental Frequency of the PLL Source
- 5 MHz, Max.
- 50/60 Hz - Rated Supply
- 500 Hz to 1 MHz - Line Filter
- DC to 20 MHz (-3 dB Point when Sine Wave of Amplitude ± 3 Division is Applied)
Humidity
- 20 to 80 % Relative Humidity - Ambient
Input
- 1.5 V-1,000 Vrms - Direct Input (Voltage Module)
- 10 mA-5 Arms
- 50 mV-10 Vrms - Sensor Input
- AC & DC, or GND - Input Coupling
- Current: Floating Input through Shunt - Input Format
- Input Level: TTL - Input/Output EXT TRIG IN, CLK IN
- Isolated Unbalanced - Input Format (Auniliary (AUX) Module)
- Maximum
- Two Input Channels, Switchable Analog or Pulse Input
- Up to 1,000 V (DC + ACpeak) Via Probe Input - Auxiliary (AUX) Module
- Up to 200 V (DC + ACpeak) Via Direct Input - Auxiliary (AUX) Module
- Voltage: Floating Input, Resistive Voltage Divider - Input Format
Input Impedance
- 50 to 5,000 ohms
Insulation Resistance
- 10 megaohms or more at 500 Vdc between the Power Supply & Case
Measuring Range
- 1.5 / 3 / 6 / 10 / 15 / 30 / 60 / 100 / 150 / 300 / 600 / 1,000 Vrms - Voltage (Crest Factor=2 at Rated Range Input)
- 10 m / 20 m / 50 m / 100 m / 200 m / 500 m / 1/2 / 5 Arms - Direct Current Input (5 A) (Crest Factor=2 at Rated Range Input)
- 50 m / 100 m / 200 m / 500 m / 1/2 / 5 / 10 Vrms (Crest Factor = 2) - Current: External Current Sensor Input (760812)
Output
- ± 12 Vdc - Probe Power Output
- ± 15 V - Sensor Power Output
- 5 V CMOS - EXT TRG OUT Output Level
- Probe & Sensor Power Output: Total, Max.
Output Format
- Analog RGB Output - Video Output
Pulse Range
- 100 Nanoseconds - Min. Pulse Width: Input/Output EXT TRIG IN
- 50 Nanoseconds - Min. Pulse Width: EXT CLK IN
- 500 Nanoseconds or Wider: Pulse Width
Resolution
- 12-bits - A/D Converter
- XGA-Compliant Output 1,024 x 768 Dots (Approximately 60 Hz Vsync (Dot Clock Frequency: 66 MHz))
Supply Voltage
- 1,500 Vac for One Minute between the Power Supply & Case
- 100-120 Vac
- 220-240 Vac (Auto Switching)
- Voltage-Axis Sensitivity Setting: 50 mV-100 V
Temperature Coefficient
- ± (0.1 % of Range)/°C Typical
Update Time
- 30 minutes
Wiring
- 2-Wire: (Single-Phase) 1P2W
- 3-Wire: (Single-Phase) 1P3W, (3-Phase) 3P3W, (3-Phase, 3 Power Metal Method) 3V3A
- 4-Wire: (3-Phase) 3P4W
