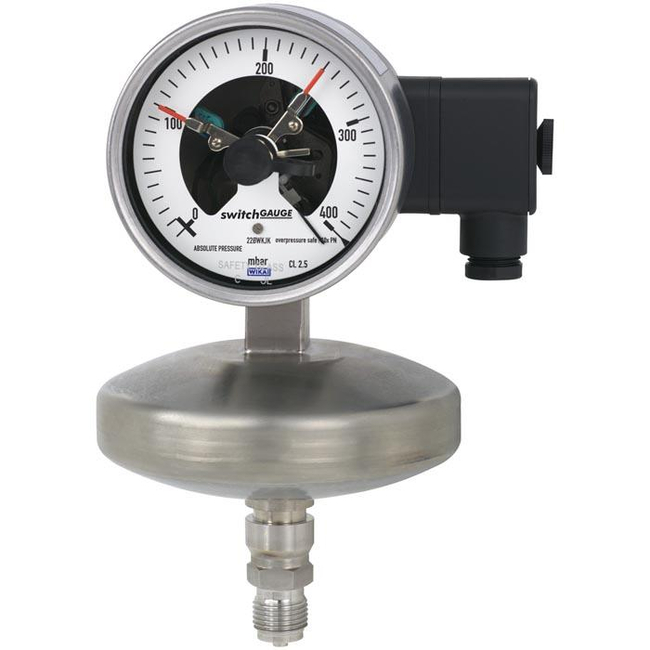

Model 532.53+8xx Absolute Pressure Gauge with Switch Contact
Brand: WIKA Alexander Wiegand SE & Co. KGWherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model 532.5x switchGAUGE finds its use.
Features- High overload safety, long service life due to metal media chamber sealing
- Media chamber protected against unauthorised access
- Also available with liquid-filled case for high dynamic pressure loads or vibrations
- Instruments with inductive contacts for use in hazardous areas
- Instruments with switch contact for PLC applications
Specifications
Design
- Mechanical Absolute Pressure gauge per DIN 16002
Nominal Size in mm
- 100
- 160
Accuracy Class
- 1.6 (Model 532.53)
- Option:
- 1.0 (Model 532.52)
- 2.5 (Model 532.54)
- The measurement accuracy is ensured for ambient Pressure fluctuations between 955 and 1,065 mbar (Min. and Max. of atmospheric Pressure)
Scale Ranges
- 0 to 25 mbar 2) to 0 to 25 bar Absolute Pressure [0 to 0.36 psi to 0 to 3,600 psi Absolute Pressure]
Scale
- Single scale
- Option: Dual Scale
Pressure Limitation
- Steady: Full Scale Value
- Fluctuating: 0.9 x Full Scale Value
Overload Safety
- 10 x Full Scale Value, Max. 25 bar Absolute Pressure, min. 1 bar Absolute Pressure
- Option: 20 x Full Scale Value, Max. 25 bar Absolute Pressure, min. 1 bar Absolute Pressure
Process Connection with Lower Measuring Flange
- Small Flange for vacuum applications DN 10
- Small Flange for vacuum applications DN 16
- Open Connecting Flange DN 25 PN 25, DIN 2501, Form D per DIN 2526
- Open Connecting Flange DN 25 PN 25 per EN 1092-1, Form B
- 1/2” NPT Female
- 1/2” NPT
- G 1/2 B
Permissible Temperature
- Medium: +100° C [+212° F] Max.
- Option: +200° C [+392° F] Max.
- Ambient: -20° to +60° C [-4° to 140° F]
- Option: -40° to +60° C (Silicone oil filling) ¹⁾
Temperature Effect
- When the temperature of the measuring system deviates from the reference temperature (+20° C): Max. ± 0.8 %/10 K of Full Scale Value
Case
- Option: Safety version S3 per EN 837: with solid baffle wall (Solidfront) and blow-out back (Models 532.32
- 532.33, 532.34)
- Instruments with liquid filling with compensating valve to vent case
- Version S1 per EN 837: with blow-out device in Case back
Case Filling
- Without
- Option: with Silicone oil M50 Case filling, ingress Protection IP65 (Models 533.52, 533.53, 533.54)
Wetted Materials
- Diaphragm Element (Pressure Element), ≤ 0.25 bar: Stainless Steel 316Ti, > 0.25 bar: NiCr Alloy (Inconel)
- Media chamber with process Connection: 316L Stainless Steel
- Option: Wetted Parts from Monel (Models 56x.3x, 56x.5x)
- Control and regulation of processes
- Monitoring of plants and switching of circuits
- Pressure measurement independent of fluctuations in the atmospheric pressure
- Monitoring of vacuum pumps, packaging machines and condensation pressures, determination of vapour pressure in liquids
