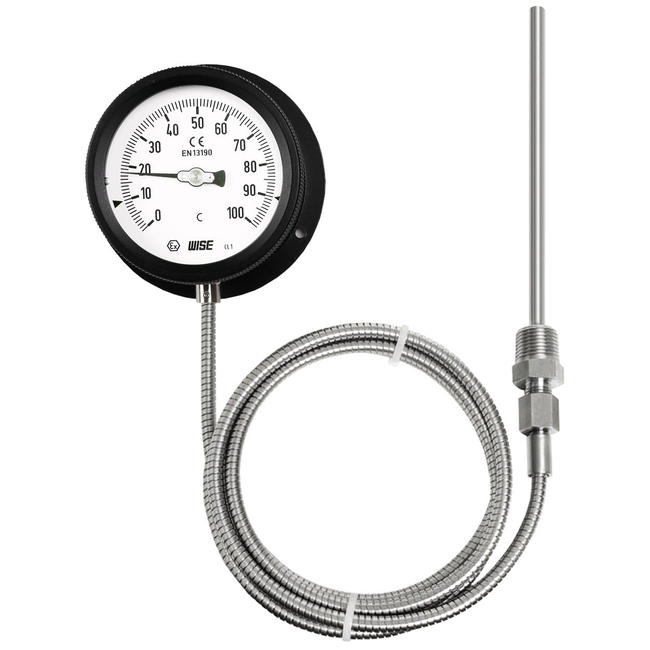

Remote Reading Thermometer with Aluminum Case T212
Brand: Wise Control IncThis thermometer is used for measuring temperature of corrosive and non-corrosive fluid in all industries.
It operates in aggressive and non-aggressive environment.
Linear dials and temperature compensate line assure an accurate temperature indication at varying ambient conditions.
Specifications
Brand
Accuracy
- ± 2.0 % of Full Scale
Capillary
- Armored Tube: 7.5 / 5.5 mm, 304 Stainless Steel
- Capillary: 1.6 / 0.2 mm, 316 Stainless Steel
Case
- Black Finished Aluminum
Cover
- Black Finished Aluminum
Dial
- White Aluminum with Black Graduations
Location of Stem & Mounting
- Bottom Connection, Surface, Case Mounting
- Lower Back Connection, Flush, Case Center Mounting
- Lower Back Connection, Flush, Case Lower Mounting
Measuring System (SAMA Class ⅢB)
- Organic Gas: 0° to 200° C
- Inert Gas: -200 ~ 700° C
Nominal Diameter
- 75, 100 & 150 mm
Options
- ± 1.0 % of Full Scale
Pointer
- Black Painted Aluminum Alloy
Stem
- 316 & 316L Stainless Steel
- 8.0, 10.0 & 12.0 mm
Stem, Process Connection
- 3/8", 1/2", 3/4" PT, NPT & PF
Window Material
- Tempered Safety Glass
Working Range
- Maximum
Zero Adjustment
- Internal
