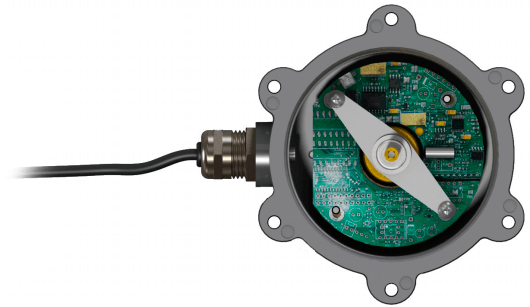

Model E7000 Two-Wire 4-20 mA Transmitter
Brand: McCrometer, Inc
Features
- Works for meter sizes up to 24”
- 2-wire 4-20 mA output
- Output is linear with flowrate
- Compatible with all McCrometer propeller meters with a mechanical register
- Installation can be accomplished without meter removal from pipe
- Signal can travel up to 5,000 feet
- Dry contact pulse
- Open collector pulse
- Anti-reverse options
Specifications
Brand
Operating Temperature
- -3.9° to 54.4° C (25° to 130° F)
Output
- 4-20 mA
Supply Voltage
- 16-40 Vdc
Accuracy
- 0.5 % Over the Entire Range
Linearity
- 0.1%
Temperature Coefficient
- ± 1.0 %
Open Collector Output Type
- NPN Darlington, Isolated
