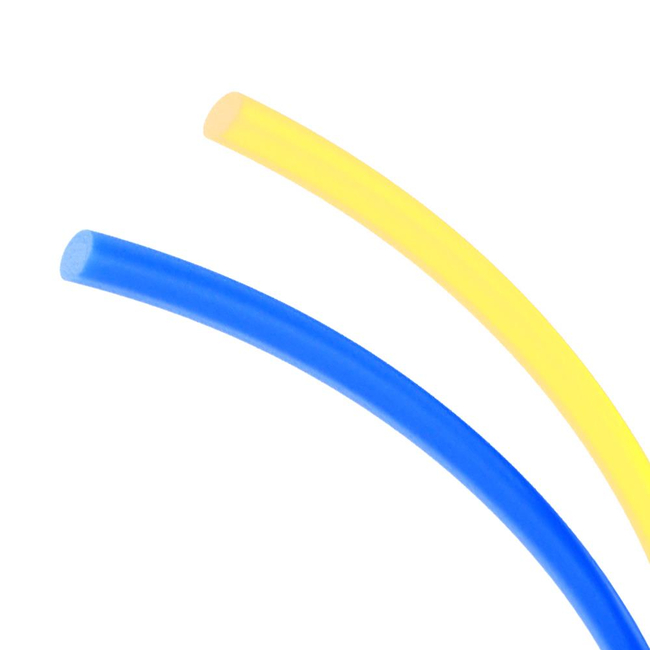

PTFE Beading - Small Diameter Rod - TFB Series
Brand: Parker HannifinPTFE Beading is a small diameter rod used in high temperature applications or applications where chemicals are present.
Typical applications include pull cords, O-ring seals, spacers or even as a woven filter.
Features- Available in chemically inert PTFE or FEP
- Exceptional heat resistance
- Low coefficient of friction
- Superior dielectric strength
- Self-extinguishing
- Non-wetting
- Excellent flex life
- Laser markable
Specifications
Brand
Applications
- Manufacturing / Industrial, Packaging, Processing
Color
- Natural
Industry Standards
- ASTM D3295, ASTM D1710, Typical 1, Grade 1, Class B, FDA Compliant, USP Class VI Compliant, VW1, UL 83
Maximum Working Temperature (°C)
- 260° C
Maximum Working Temperature (°F)
- 500° F
Media
- Chemicals, High Temperatures
Minimum Working Temperature (°C)
- 268° C
Minimum Working Temperature (°F)
- 450° F
Outside Diameter (inch)
- 0.015 - 0.188
Outside Diameter (mm)
- 0.38 to 4.8
Standard Pack Quantity (feet)
- 500, 1000, Random Length Coils
Style
- Beading
Tube O.D. (inch)
- 0.015 - 3/16"
Tube O.D. (mm)
- 0.38 to 5
Tubing Material
- PTFE
Type
- PTFE Rod
- Pull Cords
- O-ring Seals
- Spacers
- Woven into a Filter
