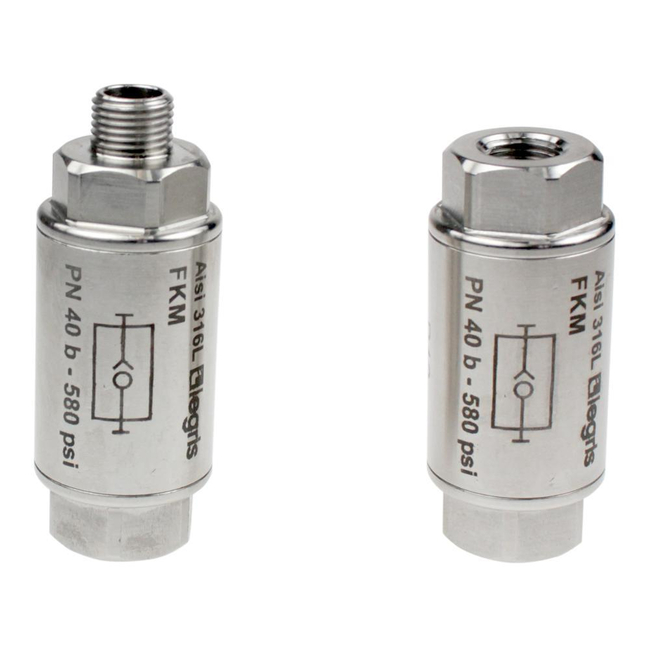

Stainless Steel Non-Return Valves
Brand: Legris - by ParkerStainless steel non-return valves are ideally suited to harsh environments and for conveying many industrial fluids. These products allow fluids to flow in one direction and prevent them from flowing in the other.
FeaturesDemanding Environments
- Robust design
- Suitable for use with many chemicals or in corrosive environments
- Compatible with many fluids
Compact & Versatile
- Reduced dimensions
- Smooth external surfaces contribute to equipment cleanliness
- Flow direction symbol protects against incorrect installation
- Hexagonal body to facilitate installation
Specifications
Brand
Material
- Rubber
- 316 Stainless Steel
Minimum Working Temperature
- -20° C
- -4° F
Maximum Working Temperature
- 180° C
- 356° F
Weight
- 0.082 kg to 0.519 kg
Media
- Many Fluids
O-Ring Material
- FKM
Maximum Working Pressure
- 580 psi
- 4 MPa
- 40 bar
Shape
- Straight
Applications
- Packaging
- Manufacturing Equipment
- Vaccum
- Various
- Pneumatics
- Automotive Process
- Food & Beverage Semiconductors
- Compressed Air / Inert Gas
Product Type
- Stainless Steel Non-Return Valves
Quantity Per Box
- 1 to 2
Connection Type
- Thread
Specifications Met
- DI: 2002/95/EC (RoHS)
- RG: 1907/2006 (REACH)
- DI: 97/23/EC (PED)
- Pneumatic Circuits Protection
- Suitable for Industrial Fluids in Harsh Environment
