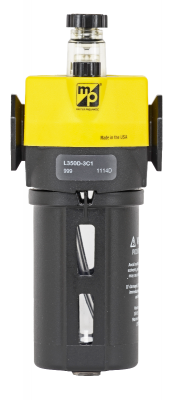

L350D Modular Sight Feed Lubricator 1/4", 3/8", 1/2"
Brand: Master Pneumatic
Features
- Modular or inline mounting.
- Sight feed design; transparent dome to show oil delivery.
- External oil delivery adjusting knob, removable for tamper resistance.
- Polycarbonate bowl with shatterguard; optional metal bowl with nylon sight glass.
- Inlet pressure rated at 250 psig (17 bar) with metal bowls up to 175°F (79°C).
- Color caps available for visual management systems. (Blue, red, yellow and grey). Consult factory for custom colors.
- Front mounted modular clamping design with encapsulated screws.
- Compatible with modular 380 series of products.
- NPTF port threads; optional BSPP threads.
Specifications
Brand
Ambient / Media Temperature
- Plastic Bowl: 40° to 125° F (4° to 52° C)
- Metal Bowl: 40° to 175° F (4° to 79° C)
Enclosure / Body Material
- Body: Zinc
Material of Construction
- Bowl: Polycarbonate Plastic, Aluminum Optional
- Dome: Nylon
Media
- Compressed Air
Inlet Pressure
- Plastic Bowl: 150 psig (10 bar) Max.
- Metal Bowl: 250 psig (17 bar) Max.
Seal Material
- Nitrile
