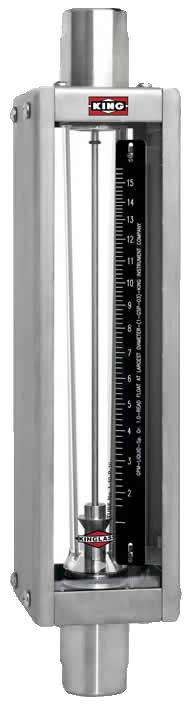

7480 Series Glass Tube Flowmeter
Brand: King Instrument CompanyThis 250mm scale, economical glass tube flowmeter features 304 stainless steel case construction. NPT or flange, vertical or horizontal connections offer installation versatility.
Features- Installation Versatility and Excellent Value
- NPT or Flange Connections, In-Line or Horizontal
- Borosilicate Kinglass Meter with SS Case and Internals
- 250mm Detachable, Direct Reading Scales
- 0.22 – 132 GPM Water; 0.9 – 350 SCFM Air
1 - 12 of 4,792 Part Numbers
748-1-2-1-31A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - .9 SCFM
- Alarm - Without Alarm
748-1-2-1-31W-0
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - .22 GPM
- Alarm - Without Alarm
748-1-2-1-32A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 1.4 SCFM
- Alarm - Without Alarm
748-1-2-1-32W-0
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - .315 GPM
- Alarm - Without Alarm
748-1-2-1-33A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 2.7 SCFM
- Alarm - Without Alarm
748-1-2-1-33W-0
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - .64 GPM
- Alarm - Without Alarm
748-1-2-1-41A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 3.4 SCFM
- Alarm - Without Alarm
748-1-2-1-41W-0
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - .77 GPM
- Alarm - Without Alarm
748-1-2-1-42A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 4.4 SCFM
- Alarm - Without Alarm
748-1-2-1-42W-0
- Media Type - Water
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Water Flow - 1.02 GPM
- Alarm - Without Alarm
748-1-2-1-43A-0
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 5.0 SCFM
- Alarm - Without Alarm
748-1-2-1-43A-1
- Media Type - Air
- Fitting Material & Orientation - Vertical FNPT - 316L SS
- Float Material - 316L SS
- O-Ring Material - EPR
- Air Flow - 5.0 SCFM
- Alarm - With Alarm
1 - 12 of 4,792 Part Numbers
Specifications
Brand
Metering Tube
- Borosilicate Kinglass
Internal Components
- 316L Stainless Steel
- Hastelloy® C-276
Fitting Material
- 316L Stainless Steel
- PVC
Inlet/Outlet Fittings
- FNPT or flange, vertical or horizontal
O-Ring
- Viton
- Buna-N
- EPR
- Kalrez®
Case And Covers
- 304 Stainless Steel case
- Polycarbonate shield
Capacities
- Water: 0.22 to 132 GPM
- Air: 0.9 to 350 SCFM
Scale
- 250 mm (10") direct reading, detachable
Accuracy
- ± 2 % of full scale flow
Turndown
- 10:1
Repeatability
- 0.5%
Maximum Temperature
- 316L Stainless Steel fittings Gases: 200° F
- PVC fittings Liquids: 110° F
Maximum Pressure
- 316L Stainless Steel fittings: 250 psig, size 3 & 4
- 316L Stainless Steel fittings: 250 psig, size 5 & 6
- 316L Stainless Steel fittings: 150 psig, size 8 & 9
- PVC fittings: 150 psig, size 3, 4, 5 & 6
- PVC fittings: 125 psig, size 8 & 9
