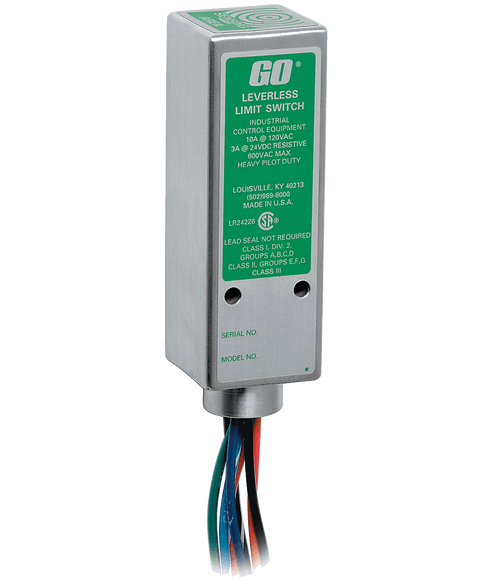

Model 81 Leverless Limit Switch
Brand: Go Switch80 Series The GO® Switch Model 81 offers end sensing and the optional worlds’s only Double Pole Double Throw contact arrangement.
With its brass or stainless steel housings and global certifications, it is a popular choice around the world.
Features- SPDT or DPDT contacts rated
- 10 amp/120 Vac, 3 amp/24 Vdc
- End sensing
- Brass or stainless enclosures
- Inherently Intrinsically Safe
- -40° to 105° C (-40° to 221° F) operating temperature
- Options
- Zone 0, 1, or 2 hazardous areas
- 176° C (350° F) high temperature
- Quick disconnect connectors
- Underwater capabilities
Specifications
Brand
Housing Material
- Stainless Steel
- Brass
Sensor
- Square Sensor
Contact
- SPDT
- DPDT
Electric Rating
- 10 A 120 Vac
- 3 A 24 Vdc
Size
- 1-1/2" Square x 4-3/8" Overall (Add 1/2" for Bottom Conduit Outlet)
Certifications & Approvals
- CSA
- UL
- FM
- MSHA
Operating Temperature
- -40° to 105° C (-40° to 221° F)
