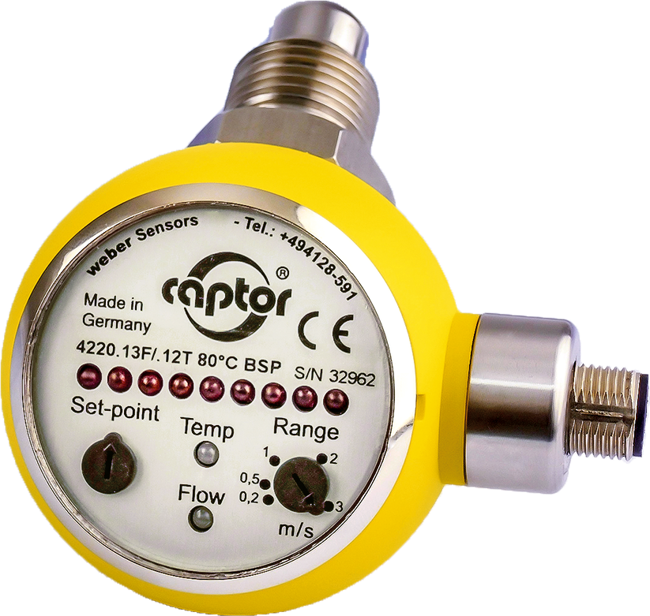

flow-captor 4220.1xF/.1xT xx °C
Brand: Captor - Weber SensorsThe flow-captor type 4220.1xF/.1xT xx °C is ideally suited for use in automation processes and other industrial applications where both the flow and the temperature of the medium must be monitored.
The sensor operates according to the calorimetric measuring principle and without mechanically moved parts. The sensor detects the flow velocity and the medium temperature and converts both into electrical signals.
Sensor Heads
The sensor head is constructed of only one piece of electro-polished stainless steel and without any sensor element intruding into the medium. Easy installation by means of T-piece or welded fitting.
For aggressive media special material such as titanium or Hastelloy can be offered on request.
The housing is constructed of glass fibre reinforced PBTP (Ultradur®). The electronics inside is completely epoxy resin encapsulated.
Features- Operating Principle: Calorimetric (Thermal)
- Measuring Range: 0 - 20 cm/s to 0 - 300 cm/s, continuously adjustable
- Medium Temperature: -20 °C to +80 °C / -4 °F to +176 °F
- Set-Point Temperature: 50 °C, 70 °C, 80 °C / 122 °F, 158 °F, 176 °C
- (other set-points on request)
- Supply Voltage: 18 - 30 VDC
- Precise switching sensor
- Separate adjustment of flow range and flow set-point
- Factory setting of the temperature switch-point according to customer’s specification
- Analog display of present flow speed and display of adjusted flow set-point via LED chain
- LED display of operating status
- ISO 9001:2015
Specifications
Brand
Medium
- water-based
Medium Temperature
- -20° to +80° C / -4° to +176° F
Ambient Temperature
- -20° to +70° C / -4° to +158° F
Pressure
- Maximum 100 bar (1450 psi)
Measuring Range
- 0-20 cm/s to 0-300 cm/s, Continuously Adjustable
Set-Point Range
- Approximately 15 % - 90 % of Range setting
Response Time
- 2 sec. - 10 sec. depending on Range setting
Linearity Deviation
- < 5 %
Repeatability Tolerance
- < 2 %
Hysteresis
- ca. 10 %
Temperature Drift
- < 0.3 % K
Set-Point
- 50° C, 70° C, 80° C / 122° F, 158° F, 176° F (Other set-Points on Request) (Should be Specified on the order)
Set-Point Tolerance
- ± 3° C
Protection Class
- IP65
Material of Housing
- PBTP, Glass fibre Reinforced (Ultradur®)
Material of Sensor Probe
- Stainless Steel AISI 303
- Hastelloy
- Titanium
Sensor Probe Sizes
- Length 30 mm, 1/2" BSP
- Length 45 mm, 1/2" BSP
- Length 67 mm, 1/2" BSP
- Length 90 mm, 1/2" BSP
Process Connection
- G 1/2" BSP thread Standard Version
- 1/2" - 14" NPT thread alternatively
Operating Voltage
- 18 to 30 Vdc, including residual ripple
Current Consumption
- Maximum 150 mA (Pulsed)
Power Consumption
- Approximately 1 W
Switching Current
- ≤ 400 mA
Circuit Protection
- reverse polarity, short Circuit and overload
Voltage Drop
- < 2.5 V at Max. load
Initial Operation
- 10 sec. after Connecting the Power Supply
Output
- flow and Temperature
- PNP N.O. or PNP N.C.
- Wind Turbines - monitoring the cooling circuit of power generators
- Locomotives & Traction Units - monitoring oil cooling circuits of power converters & transformers
- Coal Mining - monitoring of water spray systems
- Tool & Mould Making - monitoring the cooling circuit from plastic injection moulding machines
