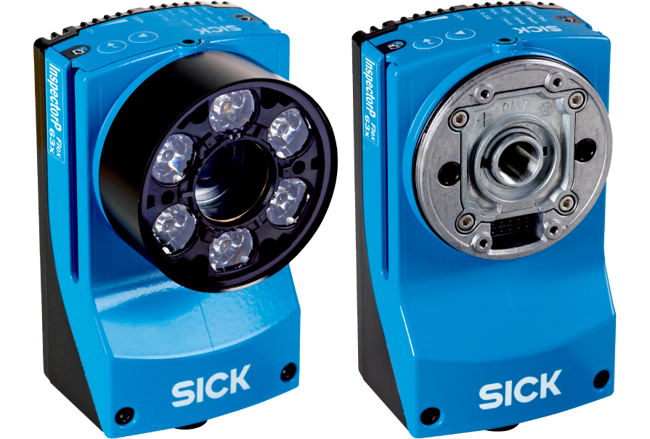

2D Machine Vision, InspectorP63x.png

InspectorP63x 2D Machine Vision

Brand: Sick AG
Add Product to My Catalog

The InspectorP63x is an industrial programmable and configurable 2D vision camera for most vision tasks. Boasting image resolutions of 1-2 megapixels, a compact IP 67 housing, and a flexible high-end optical design, it is perfectly equipped to meet demanding automation environments.

The application software is fully flexible thanks to the SICK AppSpace development environment, with image processing powered by HALCON and SICK Algorithm Library.

At a glance
  • 2D vision sensors with 1.3 and 1.9 megapixels
  • Configuration of SensorApps in a web browser
  • Programming of new SensorApps in SICK AppStudio
  • Flexible S- and C-mount lenses and integrated lighting
  • Laser alignment aid, beeper and feedback spot
  • Includes HALCON runtime license and SICK Algorithm Library
Features
  • Flexible optical design enables analysis of small features at high speeds
  • Easy start for anyone with the pre-installed Quality Inspection SensorApp
  • Fast, high-resolution programmable 2D cameras ensure maximum performance
  • Unique operator interaction possibilities thanks to powerful set of convenience features
  • Addition or extension of tool functionality for customized solutions with SICK Nova
  • Exceptional programming flexibility in SICK AppSpace or HALCON
  • Deep learning available as licensed option

1 - 4 of 4 Part Numbers
1082298
1082298
  • Lens - C-Mount
  • Sensor Resolution - 1,280 px x 1,024 px (1.3 Mpixel)
  • Type - V2D631P-2MXCXB0
1082299
1082299
  • Lens - S-Mount
  • Sensor Resolution - 1,280 px x 1,024 px (1.3 Mpixel)
  • Type - V2D631P-2MXSXB0
1082300
1082300
  • Lens - C-Mount
  • Sensor Resolution - 1,600 px x 1,200 px (1.9 Mpixel)
  • Type - V2D632P-2MXCXB0
1082301
1082301
  • Lens - S-Mount
  • Sensor Resolution - 1,600 px x 1,200 px (1.9 Mpixel)
  • Type - V2D632P-2MXSXB0
1 - 4 of 4 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE
  • EAC

Enclosure Rating

  • IP67

Sensor

  • CMOS Matrix Sensor, Grayscale Values

Sensor Resolution

  • 1,280 x 1,024 pixels (1.3 Mpixel)
  • 1,600 x 1,200 pixels (1.9 Mpixel)

Light Source

  • Internal Lighting: to be Rrdered Separately as Accessories
  • Adjustment Aid: Laser, Visible, Red, 630 to 680 nm

Optical Focus

  • Adjustable Focus

Lens

  • C-mount / S-mount

Optical Format

  • 1/1.8"

Operator Interface

  • Web Server

Control Element

  • 2 Buttons

Communication Interface

  • Serial, RS-232, RS-422
  • CAN, SICK CAN Sensor Network (Master/Slave)
  • EtherNet/IP
  • PROFINET, PROFINET Single Port, PROFINET Dual Port (Optional via external Connection module CDF600-2)
  • Ethernet, TCP/IP, FTP, HTTP

Configuration Software

  • SICK AppStudio

Dimensions

  • 108 mm x 63 mm x 46 mm

  • Robot picking
  • Precise part positioning
  • Quality inspection of shapes and dimensions
  • Defect and part presence detection
  • Calibrated, high-accuracy measurements
  • Track and trace by code reading and OCR
  • Object sorting
