230 Series Programmable Precision Transmitters
Brand: Trerice Gauges & Valves
Precision programmable transmitters provide 4 to 1 turndown as well as adjustable zero-point & span.

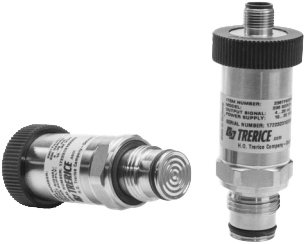

TRERICE 230TPP
This "High Precision" Digital Programmable Pressure Transmitter is the ideal choice for demanding industrial, test & measurement, and process control applications.
By use of the optional programming tool, this transmitter provides 4 to 1 turn down and adjustable zero-point & span, allowing for multiple units of measure.
The stainless steel/thin-film sensor element is directly welded to the process connection, so no internal transmission media or seals are required insuring a high degree of reliability and stability.
Stainless steel wetted parts provide long-term durability even in the harshest environments.
In addition, the modular design of the 230TPP Pressure Transmitter allows for a wide variety of electrical connections, output signals and process connections to be specified to meet the requirements of any application.
TRERICE 235TFC
This "Flush-Connection" Digital-Programmable, Pressure Transmitter is the ideal choice for demanding chemical, sanitary and food process applications.
By use of the optional programming tool, this transmitter provides 4 to 1 turn down and adjustable zero-point & span, allowing for multiple units of measure.
The stainless membrane is completely vacuum-sealed, extremely burst resistant and is applicable for use with a variety of process mediums.
Stainless steel wetted parts provide long-term durability even in the harshest environments.
In addition, the modular design of the 235TFC Pressure Transmitter allows for a wide variety of electrical connections, output signals and process connections to be specified to meet the requirements of any application.
TRERICE 236TFS
This "Flush-Socket Connection" Digital-Programmable, Pressure Transmitter is the ideal choice for demanding chemical, sanitary and semiconductor process applications.
By use of the optional programming tool, this transmitter provides 4 to 1 turn down and adjustable zero-point & span, allowing for multiple units of measure.
The stainless membrane is completely vacuum-sealed, extremely burst resistant and is applicable for use with a variety of process mediums.
Stainless steel wetted parts provide long-term durability even in the harshest environments.
In addition, the modular design of the 236TFS Pressure Transmitter allows for a wide variety of electrical connections, output signals and process connections to be specified to meet the requirements of any application.
TRERICE 238TSC
This "Sanitary Connection" Digital-Programmable, Pressure Transmitter is the ideal choice for demanding pharmaceutical, food & beverage, water treatment and chemical applications.
By use of the optional programming tool, this transmitter provides 4 to 1 turn down and adjustable zero-point & span, allowing for multiple units of measure.
The stainless membrane is completely vacuum-sealed, extremely burst resistant and is applicable for use with a variety of process mediums.
Stainless steel wetted parts provide long-term durability even in the harshest environments.
In addition, the modular design of the 238TSC Pressure Transmitter allows for a wide variety of electrical connections, output signals and process connections to be specified to meet the requirements of any application.
Features- Model 230TPP
- Ranges from 30” Hg to 0 thru 0 to 15,000 psi
- Ranges up to 60,000 psi are available and require special "High-Pressure" fittings. Please consult factory
- 4:1 Turndown with optional programming tool
- Zero point adjustment can be made using permanent magnet
- 4-20 mA and 0-10 VDC Standard Industrial Output Signals
- Fully welded "Dry Measuring Cell", requires no internal transmission fluid or seals
- 17-4 PH Stainless Steel wetted parts
- 304 Stainless Steel body
- Industry standard electrical connections including DIN 175301-803A, Shielded Cable and M12 (S7243) 4 pin
- Highly flexible modular design
- Protection Class IP65/NEMA 4X (Shielded Cable Connection and M12 4 pin Connections - IP67/NEMA 6)
- Ranges from 30” Hg to 0 thru 0 to 15,000 psi
- Model 235TFC
- Ranges from 0 to 10 psi thru 0 to 800 psi
- 4:1 Turndown with optional programming tool
- Zero point adjustment can be made using permanent magnet
- 4-20 mA and 0-10 VDC Standard Industrial Output Signals
- 316L Stainless Steel Wetted Parts
- 304 Stainless Steel body
- Industry standard electrical connections including DIN 175301-803A, C and Shielded Cable
- Highly flexible modular design
- Protection Class IP65/NEMA 4X (Shielded Cable and M12 4 pin Connections - IP67/NEMA 6)
- Model 236TFS
- Ranges from 0 to 10 psi thru 0 to 800 psi
- 4:1 Turndown with optional programming tool
- Zero point adjustment can be made using permanent magnet
- 4-20 mA and 0-10 VDC Standard Industrial Output Signals
- 316L Stainless Steel Wetted Parts
- 304 Stainless Steel body
- Industry standard electrical connections including DIN 175301-803A, C and Shielded Cable
- Highly flexible modular design
- Protection Class IP65/NEMA 4X (Shielded Cable and M12 4 pin Connections - IP67/NEMA 6)
- Model 238TSC
- Ranges from 0 to 10 psi thru 0 to 800 psi
- FDA Approved Fill Fluid
- 4:1 Turndown with optional programming tool
- Zero point adjustment can be made using permanent magnet
- 4-20 mA and 0-10 VDC Standard Industrial Output Signals
- 316L Stainless Steel Wetted Parts / 304 Stainless Steel body
- Industry standard electrical connections including DIN 175301-803A, C and Shielded Cable
- Highly flexible modular design
- Protection Class IP65/NEMA 4X, PUR Cable Connection IP68/NEMA6P, M12 4 pin - IP67/NEMA 6)
Specifications
Brand
Model
- 230TPP, 235TFC, 236TFS, 238TSC
Sensor Element
- 230TPP: Thin Film Resistors directly deposited on a Stainless Steel Diaphragm
- 235TFC, 236TFS & 238TSC: Capsule Type - Thin film resistors on a Silicon Menbrane, Oil-Filled, Staineless Steel Diaphragm
Process Connection
- 230TPP: 1/4 or 1/2" NPT Male (ASME B1.20.1) | G 1/4 B or G 1/2 B (EN 837-1)
- 235TFC: G 1/2 A, G 3/4 A, G 1 A (per ISO 1179-2)
- 236TFS: Modifies ISO 1179-2 G 1/2 A Type E with O-Ring
- 238TSC: 1-1/2" or 2" Tri-Clamp Sanitary Style Connection
Materials of Construction
- Housing: 304 Stainless Steel
- Pressure Transmission Liquid/Fluid for 235TFC & 236TFS: Silicone Oil
- Pressure Transmission Liquid for 238TSC: FDA Approved Oil
- Diaphragm Surface Finish (Ra) for 238TSC: < 30 µin
- Wetted Parts for 230TPP: 17-4 PH Stainless Steel
- Wetted Parts for 235TFC & 236TFS: 316L Stainless Steel, Viton
- Wetted Parts for 238TSC: 316L Stainless Steel
- Seal for 236TFS: Viton
Accuracy at 77° F (25° C)
- BFSL: 0.35 %
- Full Scale: 0.50 %
Non- Linearity
- BFSL: 0.15 %
- Full Scale: 0.30 %
Hysteresis
- BFSL: 0.10 %
- Full Scale: 0.10 %
Repeatability
- BFSL: 0.10 %
- Full Scale: 0.10 %
Operating Temperature Ranges
- Medium: -40° to 14° to 257° F (-40° to -10° to 125° C)
- Ambient: -40° to 14° to 185° F (-40° to 10° to 85° C)
Temperature Error Band
- Temperature compensated to within 1 % between -4° to 41° to 185° F (-20° to 5° to 85° C)
Humidity
- 95 % RH, Non-Condensing
- 100 % RH with Shielded Cable Connection (E3)
Electronic Connection
- 90° Angle "Standard" Connector / DIN 175301-803 (A)
- Shielded Cable (3 ft Standard)
- M12 (S7243) 4-pin Circular Connector
- PUR (Polyurethane) Cable (3 ft Standard)
Output Signal
- 4-20 mA (2-Wire) and 0-10 Vdc (3-Wire)
Overpressure Limit for 230TPP
- Ranges ≤ 5000 psi at least: 1.5 x Full Scale
- Burst Pressure at least: 2.9 x Full Scale
- 10,000 - 15,000 psi at least: 1.2 x Full Scale
- Burst Pressure at least: 1.5 x Full Scale
Overpressure Limit for 235TFC, 236TFS & 238TSC
- At Least: 1.5 x Full Scale
- Burst Pressure at Least: 2.9 x Full Scale
Response Time (10-90%)
- < 10 ms
Power Supply
- Output Signal: 4-20 mA | Min.: 10 Vdc | Max.: 32 Vdc | Recommended: 24 Vdc
- Output Signal: 0-10 Vdc | Min.: 12 Vdc | Max.: 32 Vdc | Recommended: 24 Vdc
Load Resistance
- 4-20 mA: ≤ (Vsupply - 10 Vdc)/0.02 A
- 0-10 Vdc: > 5 kOhm
Circuit Protection
- Protected against reverse Polarity and Short Circuits
CE Conformity
- RoHS2 Directive 2011/65/EU
- EMC Directive: 2014/30/EU - PED Directive: 2014/68/EU
- Applied Standards: EN 61326-1: 2013, EN 61326-2-3: 2013
Ingress Protection Rating
- 90° Angle Connector: IP65 / NEMA 4X
- Shielded Cable & M12 4-pin: IP67 / NEMA 6
- PUR Cable: IP68 / NEMA 6P
Approximate Shipping Weight
- 0.4 lb (0.20 kg)
- Industrial Environments
- Hydraulic Systems
- Pneumatics
- Food & Beverage Industry
- Water Treatment
- Pharmaceutical Industry
- Test Equipment
- Mobile Hydraulics
- Fracking
- Sanitary Applications
- Automotive Paint Systems
